Vibrating screen for urea screening

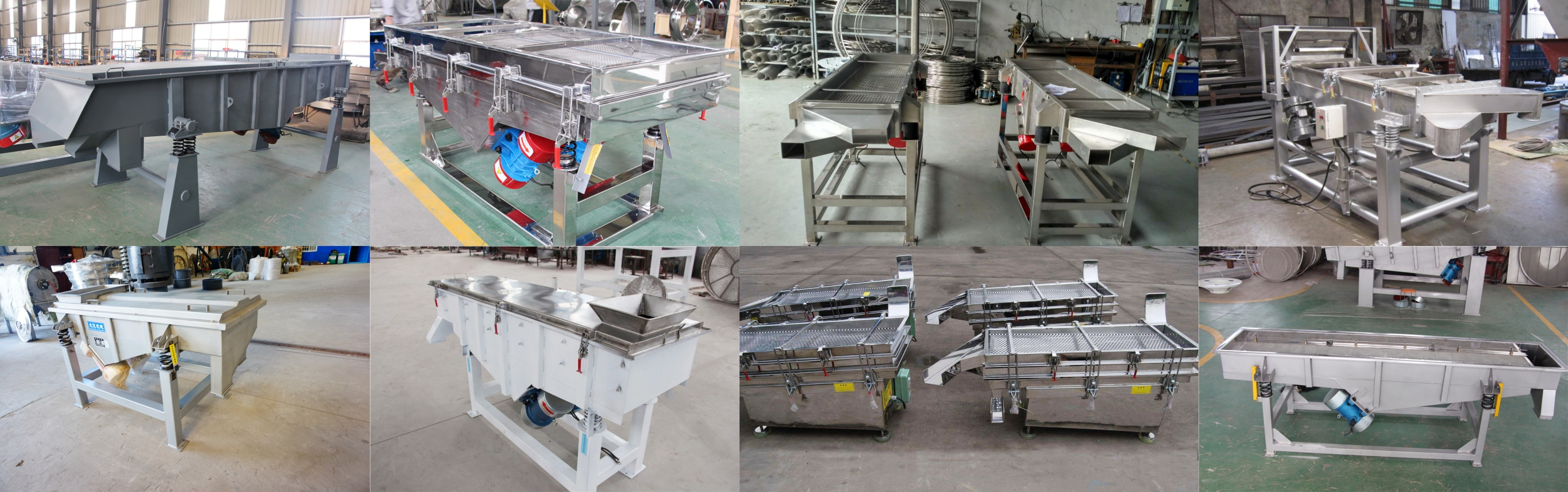

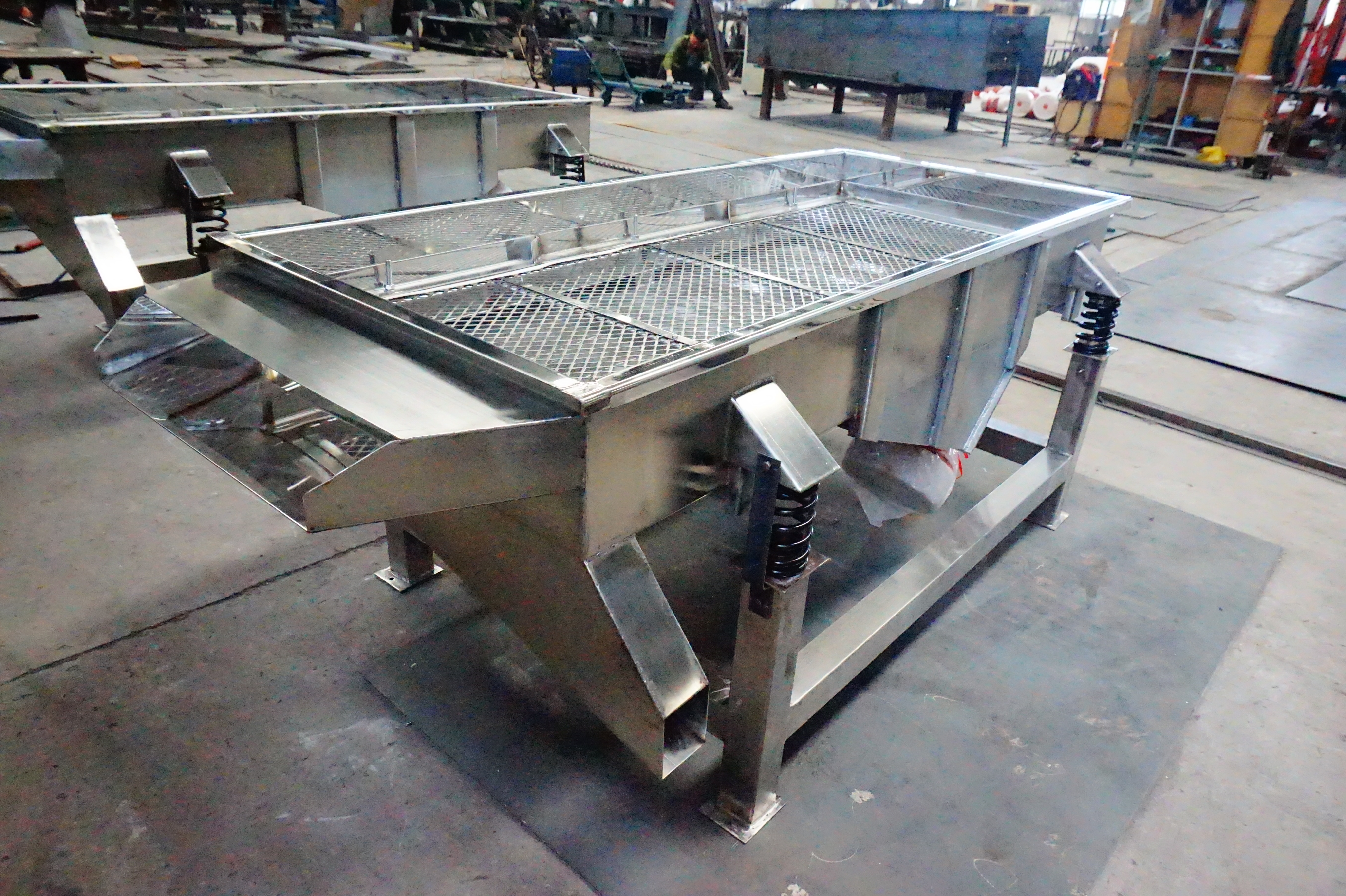

Vibrating screens are widely used in the screening process of urea, mainly for removing powder from urea granules, grading urea granules, and controlling the particle size of urea. Urea linear vibrating screen is one of the commonly used types. It uses vibration motor excitation as the vibration source to make the material be thrown up on the screen and move forward in a straight line, thereby achieving the purpose of screening and grading.

Video of vibrating screen for urea screening

How does the vibrating screen for urea screening work?

Vibrating screen for urea screening mainly relies on the exciting force generated by the vibrating motor to make the screen body vibrate at high frequency. When urea particles enter the screen surface, under the action of vibration, particles smaller than the screen aperture pass through the screen and fall down, becoming undersize, that is, urea products that meet the particle size requirements; while particles larger than the screen aperture move along the screen surface and are finally discharged from the discharge port, becoming oversize. These oversize may be agglomerated or larger urea particles, which need further processing.

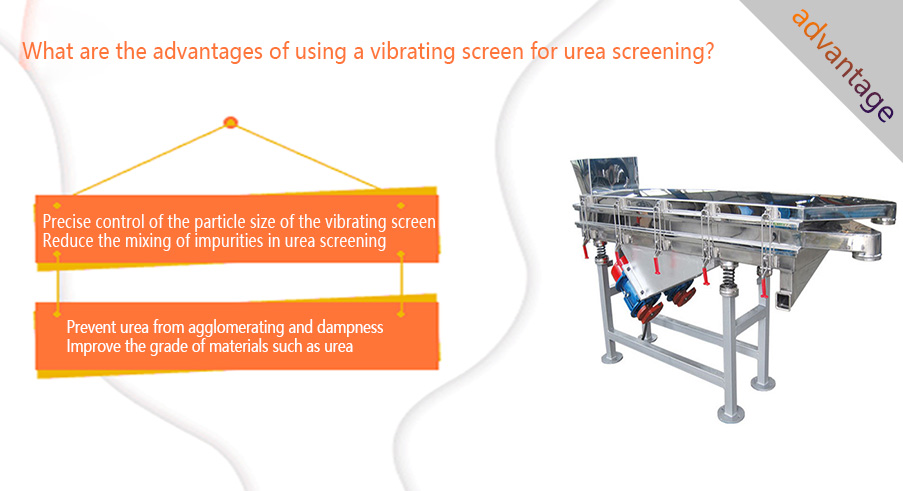

What are the advantages of using a vibrating screen for urea screening?

1. Precise control of the particle size of the vibrating screen: By selecting screens with different mesh sizes, the vibrating screen can accurately control the particle size of urea. Whether it is the uniform particle size required for agricultural urea or the strict requirements for a specific particle size range for industrial urea, the vibrating screen can accurately screen out qualified products and improve the stability of urea product quality.

2. Reduce the mixing of impurities in urea screening: During the screening process, the vibrating screen can effectively remove impurities in urea, such as foreign matter that may be produced during the production process, unreacted raw materials, etc., improve purity, and reduce problems such as blockage and abnormal reactions caused by impurities.

3. Prevent urea from agglomerating and dampness: Urea easily absorbs moisture in the air, causing agglomeration and affecting screening efficiency. The vibration of the vibrating screen can break up the agglomerated urea and allow it to pass through the screen smoothly. Using a high-frequency vibrating screen can effectively reduce the adhesion of urea.

4. Improve the grade of materials such as urea: Through screening and filtration, the vibrating screen can control and select the particle size of urea, thereby improving the grade of urea.

Recommended mesh size of vibrating screen for urea screening

Large-grained urea (agricultural use): Typically requires a larger screen opening and therefore a lower mesh size, perhaps between 4 mesh and 20 mesh.

Medium granular urea (industrial): May require finer screening and may range from 20 mesh to 60 mesh.

Small Particle Urea (Fine Chemicals): For applications requiring very fine particles, a higher mesh size may be required, such as 60 mesh to 100 mesh or higher.

What is the vibrating screen used for in urea production?

1. Particle size classification in the urea production process: During the granulation process after the urea synthesis tower, urea particles of different particle sizes will be produced. Through the vibrating screen, these particles can be classified according to size, and qualified particles (such as 1-3mm) can be screened out as finished products. The oversized particles are reprocessed, and the undersized particles are collected for other purposes.

2. Quality inspection before packaging of urea products: The final inspection is carried out using a vibrating screen to screen out mixed impurities, agglomerated urea particles, and unqualified oversized or undersized particles to ensure that the packaged urea products are pure, free of impurities, and meet quality standards.

3. Reuse of urea powder: Urea powder produced during urea production and packaging can be collected by a vibrating screen. These powders can be used in the preparation of urea solutions and as raw materials for the production of other chemical products to achieve effective utilization of resources.

4. Mixing of urea with other materials: In some applications, urea needs to be mixed with other materials (such as fertilizers and additives). The vibrating screen can be used for screening during the mixing process to ensure the uniformity and particle size consistency of the mixture.

5. Application of urea in agriculture: In agriculture, the size of urea particles will affect its fertilization effect. Through the vibrating screen, urea particles can be screened into particle sizes suitable for different fertilization methods. For example, large urea particles are suitable for broadcasting, and small urea particles are suitable for spraying.

Things to note when using vibrating screens for urea screening

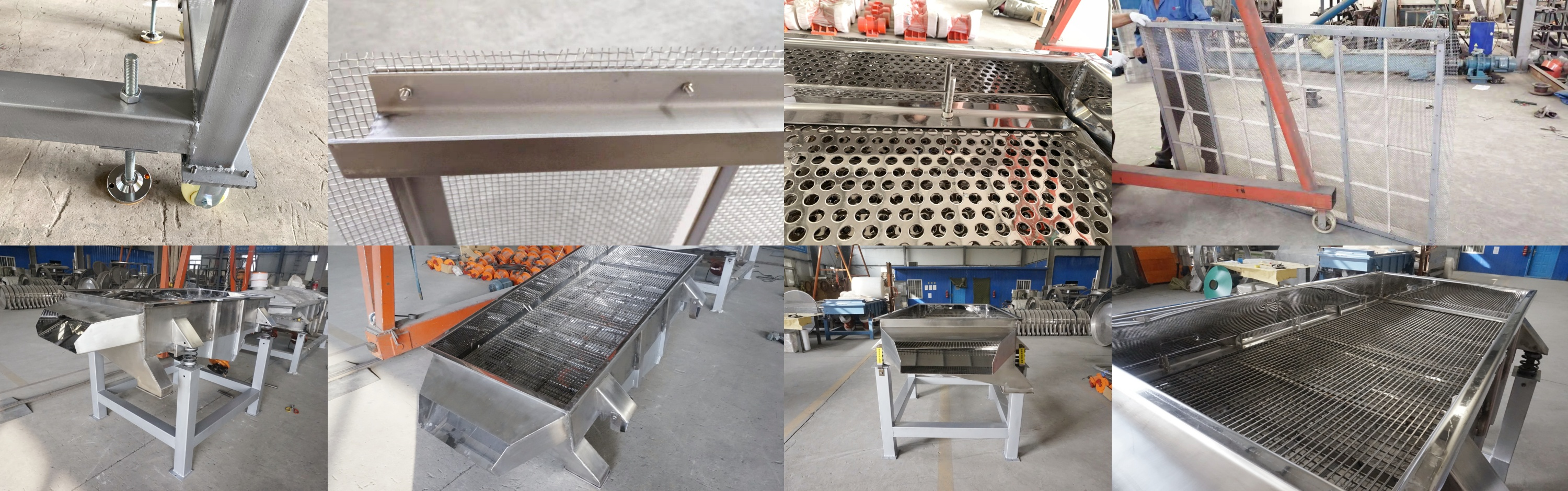

Screen selection: The screen is one of the key components of the vibrating screen. The appropriate screen type and specification should be selected according to the particle size of urea and screening requirements.

Prevent screen clogging: Since urea is easy to get wet and agglomerate, it may cause the screen machine to block the screen. Therefore, effective measures should be taken to prevent screen blocking during the screening process, such as removing the screen spreader and installing a bouncing ball screen cleaning device.

Maintenance: Regularly maintain the vibrating screen, including cleaning the screen and checking the operation of vibration motors and other components, to ensure the normal operation and screening effect of the vibrating screen.

Vibrating screen for urea screening has many advantages in urea screening and is an indispensable and important equipment in the urea production process. Through reasonable selection of vibrating screen type and specifications, the screening effect and product quality of urea can be further improved.
