Montmorillonite clay powder vibrating screening machine

Montmorillonite clay powder vibrating screening machine removes foreign matter from montmorillonite clay powder, separates it into different particle sizes, and prevents clogging of the mesh.

The screen mesh size ranges from 0.025mm to 2mm, corresponding to a sieve mesh size of approximately 20 to 600 mesh. The screen material is typically stainless steel, nickel alloy, or polyurethane. The vibration frequency can be adjusted from 1000 to 3000 rpm by adjusting the motor eccentric block. Processing capacity ranges from 0.5 tons/hour to 5 tons/hour. Depending on the specific operating conditions, machines such as ultrasonic vibrating screens, linear vibrating screens, and planar rotary screens can be selected.

Advantages of Montmorillonite Clay Powder Vibrating Screening Machines

The screening components of Montmorillonite clay powder vibrating screening machines typically utilize high-precision microporous screens. The screen inclination angle of the linear vibrating screen is adjustable from 0° to 15° to reduce fine powder clogging and particle backflow. The screen material is mostly stainless steel or polyurethane, which has wear-resistant and non-stick properties, suitable for processing highly viscous and easily agglomerated montmorillonite powder. The vibration system is designed with dual-shaft or eccentric wheel vibration, with adjustable amplitude and a frequency generally between 800-1200 r/min, to ensure uniform material distribution, avoid screen clogging, and reduce dust emission. To handle highly hygroscopic materials, the screen frame and bottom are sealed to prevent dust leakage and material adhesion. The material conveying channel and discharge port have smooth surfaces, facilitating gravity discharge of powder. The ultrasonic screen cleaning system operates at a vibration frequency of 30,000-40,000 Hz, achieving microscopic screen cleaning. The bouncing ball screen cleaning device, through intermittent impact, ensures continuous screen penetration, overcoming the adhesion bottleneck of montmorillonite clay powder.

Montmorillonite clay powder vibrating screening machine type selection

Montmorillonite clay powder is a fine, highly expandable, and highly absorbent natural mineral material. During screening, it is prone to agglomeration and clogging, requiring careful selection of the vibrating screening machine. Ultrasonic rotary vibrating screens are suitable for fine powder screening, linear vibrating screens are suitable for high-yield screening of medium and coarse powders, and planar rotary screens are suitable for wet powders or difficult-to-screen materials.

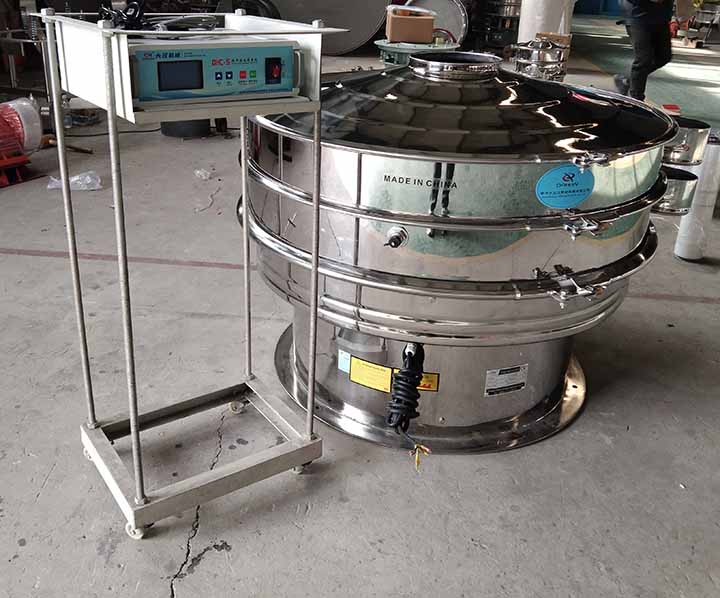

Ultrasonic rotary vibrating screen: This type combines the high-frequency rotary vibration of a conventional rotary vibrating screen with additional low-frequency ultrasonic vibration, causing the mesh to vibrate slightly, which can break down the adhesion, agglomeration, and static electricity of montmorillonite clay powder. Screening mesh sizes range from 20-500 mesh, with a throughput of 0.5-5 tons/hour. For montmorillonite clay powder grading, 1-5 layers of screens can be stacked to achieve grading of 2-6 different particle sizes.

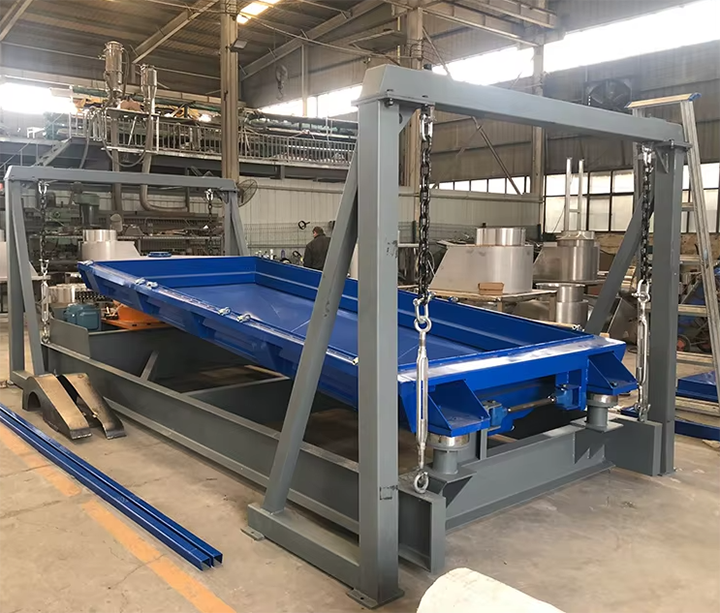

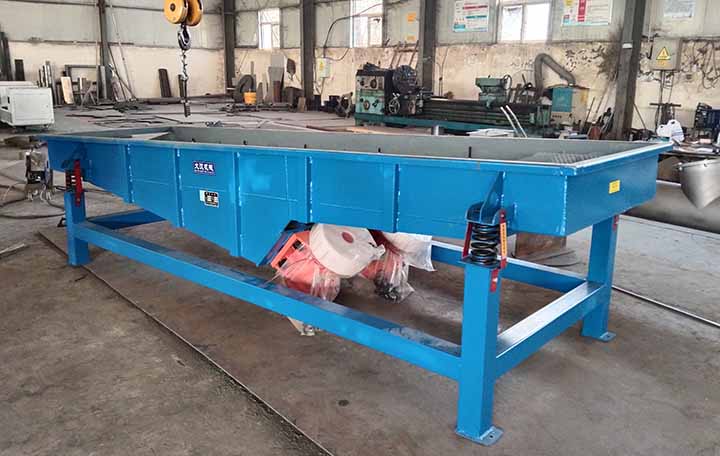

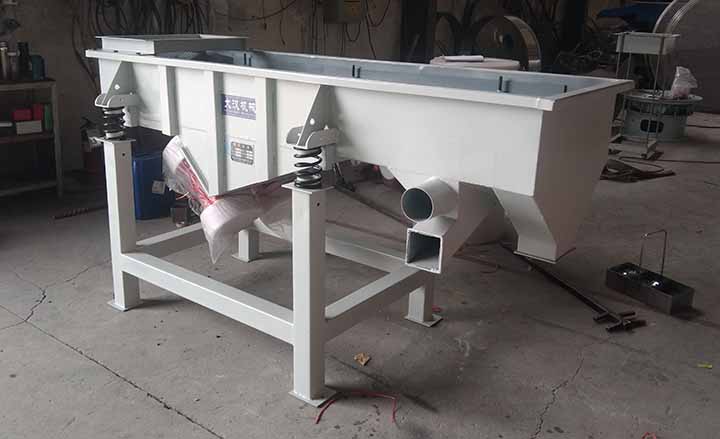

Linear Vibrating Screen: Rectangular in shape, it uses a motor-driven vibrator to generate linear vibration, causing the material to move linearly along the screen surface. Suitable for sieving medium to coarse montmorillonite clay powder. Screening mesh sizes range from approximately 40-200 mesh, with a throughput of 1-20 tons/hour. This type of equipment is suitable for improving screening efficiency and for primary montmorillonite clay powder grading; custom sizes are also available.

Plane Rotary Screen: Vibration occurs through planar rotation of the screen surface, causing the material to slowly tumble and stratify on the screen surface. Suitable for montmorillonite clay powder with high moisture content and a tendency to agglomerate. With a sieving mesh size of 60-300 mesh and a moderate processing capacity of approximately 0.5-10 tons/hour, the equipment is mostly a circular or square rotary screen, suitable for assembly line operations. Equipment size and layout can be flexibly selected based on output, sieving precision, and workshop space.

Applications of the Montmorillonite Clay Powder Vibrating Screening Machine

The Montmorillonite clay powder vibrating screening machine can sieve various types of montmorillonite clay powder, including dry powders and fine powders. In the ceramics industry, it can sieve unevenly ground montmorillonite powder into a uniform fineness for use in ceramic raw materials, improving the density of the body and the quality of the finished product. In the cosmetics industry, it is used to sieve ultrafine montmorillonite powder, ensuring uniform powder distribution in masks and skincare products, thereby improving the user experience and adsorption performance. In the pharmaceutical and health product fields, the vibrating screen can remove impurities and large particles, ensuring the fineness and safety of the montmorillonite powder, making it suitable for pharmaceutical processing.

The choice of Montmorillonite clay powder vibrating screening machine depends on the available space. If space is limited, an ultrasonic vibrating screen can be chosen; if space is ample, a linear vibrating screen or a planar rotary screen can be selected. Whether separating powder by particle size, removing impurities, or classifying montmorillonite clay powder, these three types of machines each have specific characteristics. Dahan Machinery can customize configurations and conduct trial runs with materials, possessing mature manufacturing processes and customization capabilities.
