Feldspar powder Vibrating Screen

Feldspar powder itself has a relatively low density and decent flowability, but it tends to clump when exposed to moisture, sometimes even becoming sticky, making sieving challenging. The Feldspar powder Vibrating Screencontinuously agitates and shakes the feldspar powder on the screen, breaking up clumps and allowing finer powder to fall through more easily. Screens are available in mesh sizes from 20 to 500, and 1 to 5 layers can be stacked at once to separate feldspar powder into 2–6 particle sizes, eliminating the need for repetitive operations. The screen frames are typically made of stainless steel or carbon steel, ensuring sturdiness and durability. Depending on the needs, a single machine can sieve 50kg–3000kg per hour, handling both small batches and high-volume production lines.

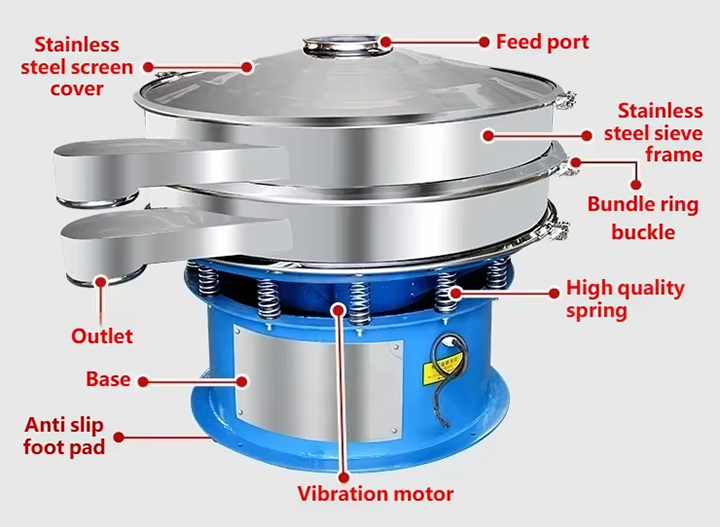

Feldspar Powder Vibrating Screen Configuration

The Feldspar powder vibrating screen uses a vertical vibrating motor to create a composite vibration of the screen in horizontal, vertical, and inclined directions. The resulting motion is relatively gentle and dispersed, suitable for sieving feldspar powder. The screen surface is circular, with diameters of 600mm, 800mm, 1000mm, 1200mm, 1500mm, and 1800mm, selectable based on production volume and screening precision. Material enters vertically from the center, spreading evenly across the screen surface, preventing accumulation in any one area and affecting grading. The discharge port is designed according to the number of screen layers, with each layer having an independent discharge outlet, typically 80mm to 150mm in diameter, arranged logically for easy conveying or packaging. The screen cleaning system is equipped with rubber bouncing balls that prevent clogging by high-frequency impact on the screen. For materials with high moisture content or ultrafine powder, ultrasonic cleaning can be used. The screen uses a snap-on quick-tensioning mechanism, making assembly and disassembly convenient and ensuring even tension; screen replacement can be completed in just 3 to 5 minutes.

What are the benefits of the Feldspar powder vibrating screen?

Feldspar powder particles are fine and easily agglomerate, easily clogging the screen surface during screening. The Feldspar powder vibrating screen offers several advantages in this regard. It utilizes the principle of rotary vibration to make materials undergo planar swirling motion on the screen surface, rapidly breaking down and classifying feldspar powder, significantly improving screening throughput. The entire device has a closed structure, ensuring minimal dust escape during screening, maintaining a clean operating environment and reducing feldspar powder waste. Screen replacement is also convenient; the tensioning device is ergonomically designed, allowing operators to quickly change screens or clean the screen surface, minimizing downtime and labor intensity. Furthermore, the circular rotary vibrating screen is small, lightweight, easy to move, consumes little power, operates quietly, and requires no complex foundation, making it ideal for flexible integration into existing feldspar powder production lines. It can operate as a standalone unit or be connected in series to form an automated screening system, improving overall production efficiency while reducing operational complexity.

Feldspar Powder Vibrating Screen Sieving Particle Size Table

Feldspar Powder Vibrating Screen Application Case

On a potassium feldspar powder production line of a non-metallic mineral deep processing enterprise, the Feldspar powder vibrating screen is used for dry fine powder classification, achieving a daily output of 12 tons per hour. The screening system uses a double-layer screen with 200-mesh and 320-mesh screens, combined with an ultrasonic screen cleaning device, solving the problems of easy screen clogging and uneven particle size of feldspar powder. After screening, the qualified rate of the finished powder increased from 82% to 96%, and the purity of the fine powder was stable, meeting the requirements of ceramic body and glaze raw materials. The equipment can run continuously for more than 16 hours, and the number of maintenance times has been reduced. The vibrating screen can be integrated with the automated process of the production line, improving both product quality and production efficiency, and making operation more convenient and worry-free.

The Feldspar Powder Vibrating Screen offers excellent adaptability in terms of particle size range, screen frame material, and screening capacity. Combined with its three-dimensional vibration mode, flexible feed and discharge design, and screen cleaning and tensioning technology, it effectively addresses the characteristics of feldspar powder: light weight, easy dust generation, and susceptibility to moisture absorption and clumping. Its high screening accuracy, low dust content, low energy consumption, and ease of operation and maintenance have been demonstrated in numerous practical applications. Even in high humidity and complex environments, the equipment operates stably without affecting the quality and yield of the finished powder. By using this vibrating screen, companies can improve the quality of feldspar powder, streamline the production process, reduce downtime and maintenance time, and make it easier for operators.
