Ultrasonic Vibrating Screen Sieve Fine Powder

Ultrasonic Vibrating Screen Sieve Fine Powder is designed to address the sieving of fine, sticky, and easily agglomerated powders.The device can screen powders with particle sizes ranging from 50-500 mesh and a processing capacity of 0.5-4.5 tons/hour.

The Ultrasonic Vibrating Screen Sieve Fine Powder can be configured with appropriate components based on the properties of the material. For example, sticky materials like resin powder and carbon black can be equipped with an anti-sticking mesh design, such as adjustable ultrasonic amplitude and a self-cleaning screen. Chemical acid and alkali powders require a 304/316L stainless steel screen to prevent rust. Flammable and explosive materials like pulverized coal and aluminum powder require explosion-proof design, such as an explosion-proof motor and anti-static screen.

Ultrasonic Vibrating Screen Sieve Fine Powder Working Principle

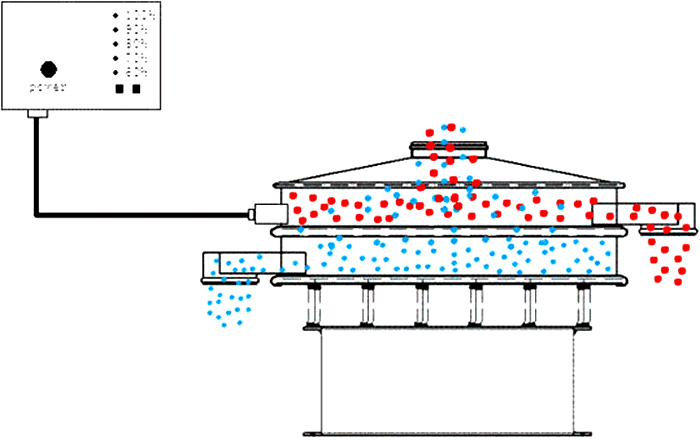

The Ultrasonic Vibrating Screen Sieve Fine Powder uses ultrasonic transducers to convert electrical energy into vibrational energy, efficiently separating impurities through the screen. Its operating method depends on the intended purpose: for classification, multiple screen layers (typically 1-5 layers) are used to separate various particle sizes; for impurity removal, a single coarse screen with ultrasonic waves is used to ensure efficient de-agglomeration of the raw material; for slurry filtration, a sealed model that supports wet screening is required.

Ultrasonic Vibrating Screen Sieve Fine Powder Types

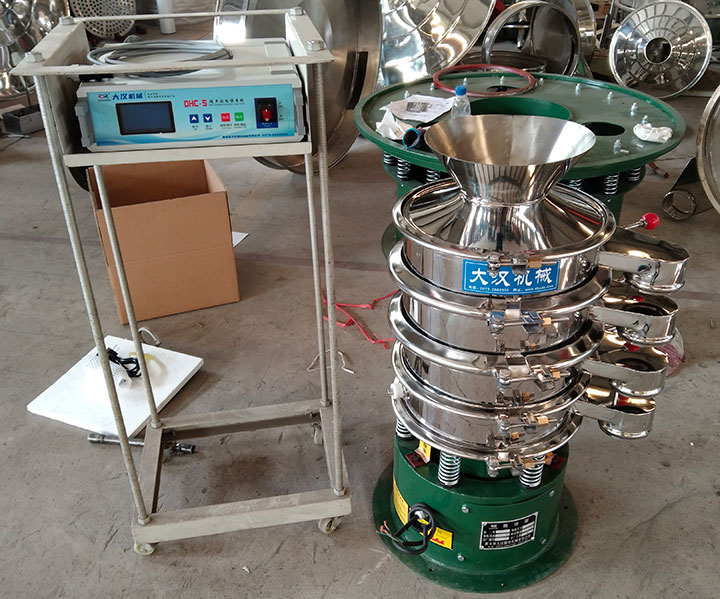

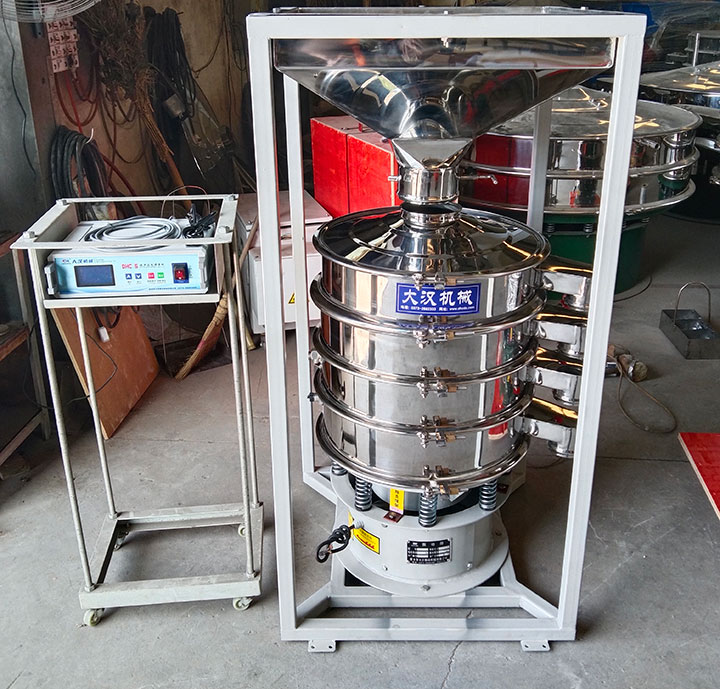

The Ultrasonic Vibrating Screen Sieve Fine Powder is available in built-in or external versions, depending on the installation location of the ultrasonic generator.

Built-in: The ultrasonic transducer is integrated beneath the screen, resulting in a compact design and an ultrasonic energy transmission efficiency exceeding 90%. It is particularly suitable for screening fine powders with mesh sizes of 800-2000, and can efficiently process ultrafine materials such as silicon carbide micropowder and lithium battery materials. It can achieve an output of 50-200 kg per hour, making it suitable for small equipment and fine powder screening, especially in applications with limited space.

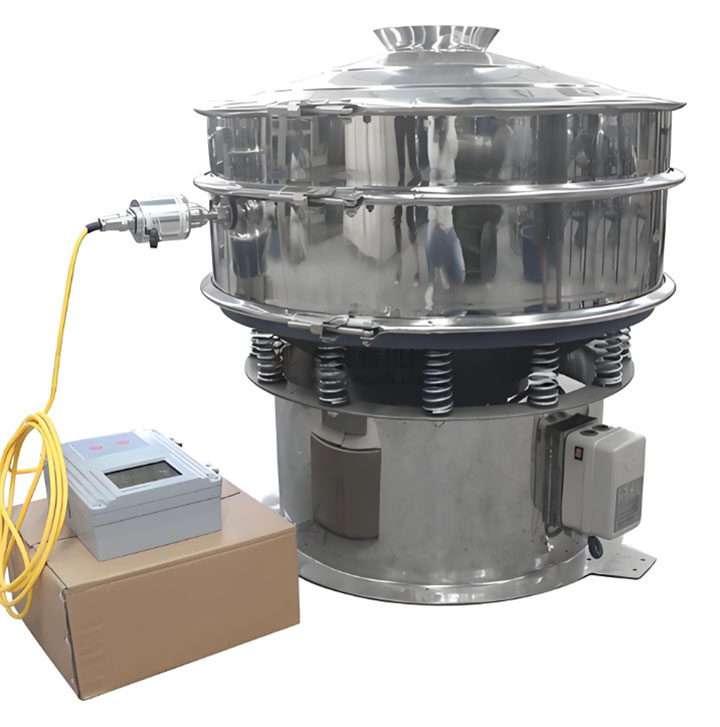

External Type: The ultrasonic generator is independent of the sieve body, providing excellent heat dissipation and easy maintenance and power adjustment. This makes it ideal for large-scale industrial continuous production and can stably process powder materials with mesh sizes of 200-1200, such as flour and cement additives. A single unit can achieve an hourly output of 300-1000 kg.

Ultrasonic Vibrating Screen Sieve Fine Powder Specifications

What materials is the Ultrasonic Vibrating Screen Sieve Fine Powder suitable for?

The Ultrasonic Vibrating Screen Sieve Fine Powder is well-suited for the following types of materials, resolving material screening challenges and significantly improving screening efficiency and accuracy.

Chemicals: For materials such as talc, calcium carbonate, graphite, and fluorescent powder, it prevents fine powders from agglomerating due to static electricity or viscosity, enabling precise grading.

Pharmaceuticals: For materials such as Traditional Chinese Medicine powders (e.g., Panax notoginseng powder, Astragalus root powder) and Western medicine raw material powders (e.g., antibiotic fine powder), it complies with GMP requirements and ensures screening cleanliness.

Foods: For materials such as flour, milk powder, coffee powder, and cocoa powder, it removes impurities and controls particle uniformity, improving product quality.

Metallurgy/Mining: For materials such as metal powders (aluminum and copper), quartz sand, and rare earth powders, it efficiently separates fine powder from coarse residue, meeting the needs of further processing.

New Energy: For materials such as lithium battery cathode material powders (ternary materials and lithium iron phosphate) and anode graphite powder, it ensures consistent particle size and contributes to stable battery performance.

Ultrasonic Vibrating Screen Sieve Fine Powder Supplier

As a manufacturer of Ultrasonic Vibrating Screen Sieve Fine Powder, we can customize explosion-proof motors, special screen materials, and multi-outlet configurations for special materials, such as ultrafine powders, highly viscous materials, or flammable or explosive materials. We also offer trial runs to measure screening efficiency, throughput, and pass rate. We also provide installation, commissioning, and operator training to ensure operational success. We are dedicated to the research and development and manufacturing of these equipment, leveraging our expertise to provide customers with superior equipment and services.
