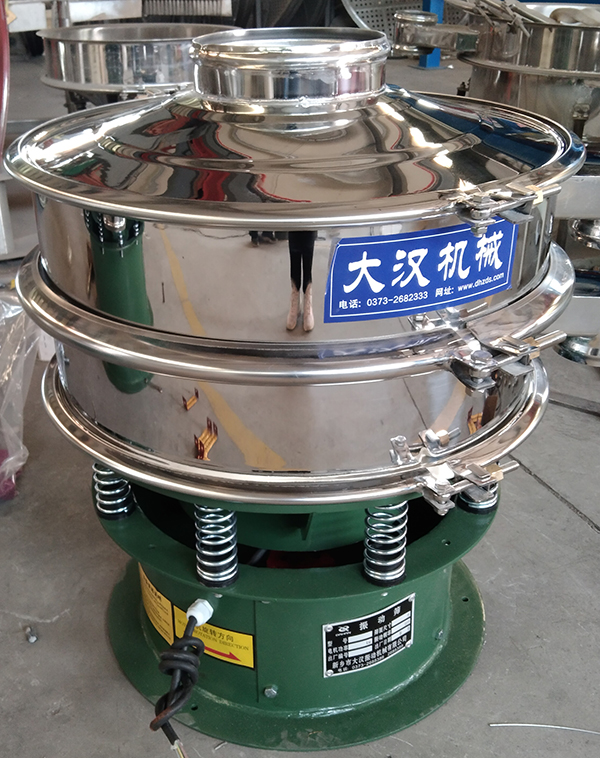

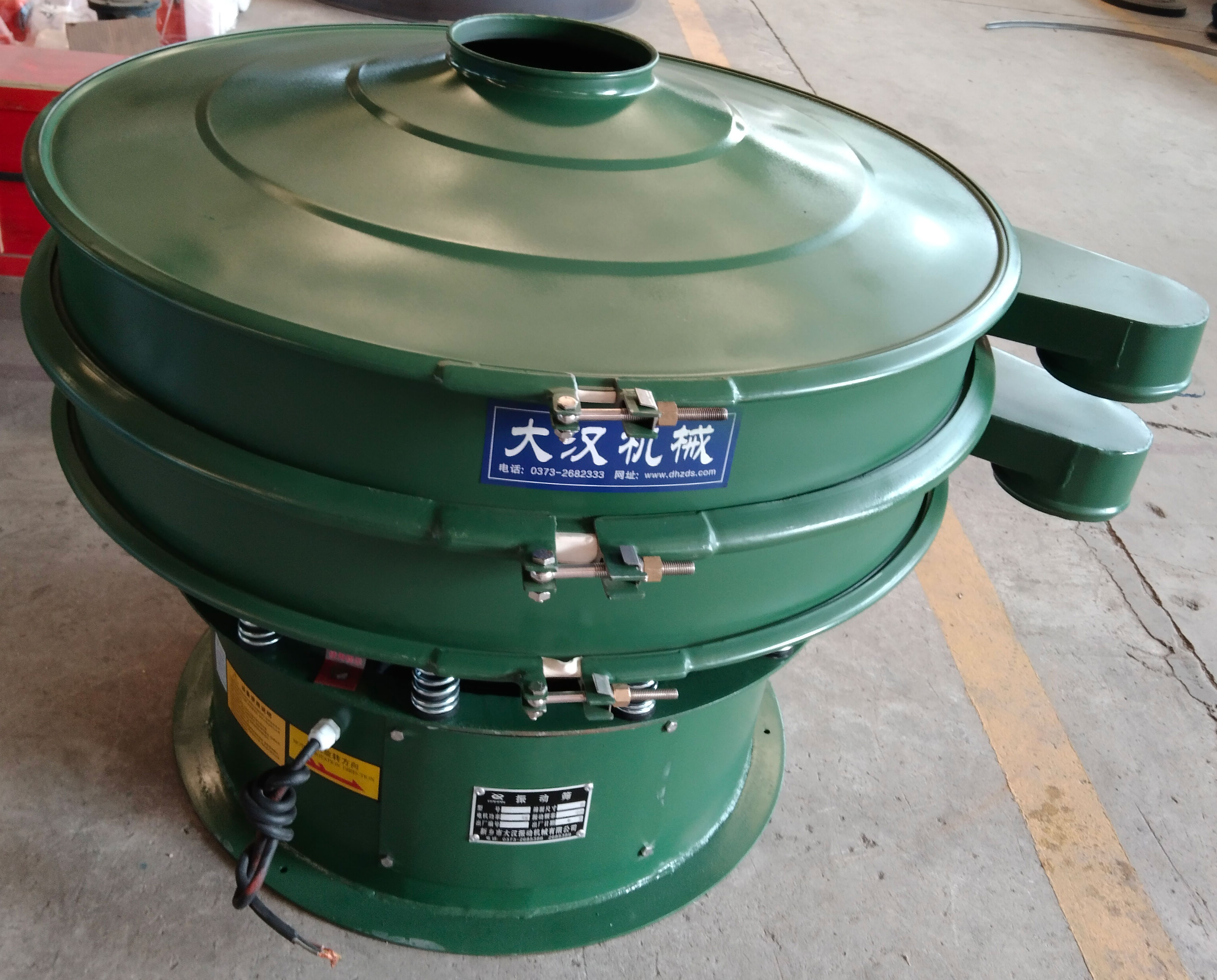

Vibratory Sifter Medicine Powder Sieving

Vibratory Sifter Medicine Powder Sieving is a device used in the pharmaceutical industry for fine sieving of pharmaceutical powders. It is suitable for a wide range of pharmaceutical raw materials and excipients, ensuring powder uniformity and purity. The device can process pharmaceutical powders including antibiotic powders such as penicillin, which are highly hygroscopic and sticky and require rapid sieving to prevent agglomeration; vitamin and mineral powders such as vitamin C, which are fine-grained and flowable but prone to static electricity and require anti-static design; traditional Chinese medicine extracts such as dried extract powders, which contain fibers or are slightly sticky and require high-throughput sieving; chemically synthesized APIs such as ibuprofen, which require precise sieving with high particle uniformity; and pharmaceutical excipients such as lactose, which require high-precision sieving to ensure mixing uniformity.

The Vibratory Sifter Medicine Powder Sieving has a sieving range of 5-500 mesh, meeting the fineness requirements of various pharmaceutical products and is suitable for sieving pharmaceutical powders from coarse particles to ultrafine particles. It has a throughput of 100-3300 kg/hour and supports configurations with 1-5 screen layers, enabling simultaneous multi-stage sieving and improving pharmaceutical powder production efficiency. Furthermore, the equipment features a sealed design that complies with GMP standards, effectively preventing product cross-contamination and ensuring pharmaceutical production safety.

Advantages of the Vibratory Sifter Medicine Powder Sieving

The Vibratory Sifter Medicine Powder Sieving offers significant advantages in pharmaceutical powder sieving, primarily in the following areas:

Material Adaptability: This equipment can handle a variety of complex pharmaceutical powders, including those with high activity, moisture absorption, fine particle size, and strong viscosity. Adjusting the vibration force, screen tension, and tilt angle allows for targeted adjustments to meet diverse pharmaceutical powder sieving requirements.

Structural Advantages: Made entirely of 304 or 316L stainless steel, it complies with GMP standards. The sieve features a quick-release mechanism for easy cleaning, maintenance, and screen replacement. The entire unit is sealed to prevent dust leakage and effectively control cross-contamination.

Functional Advantages: It offers multiple functions, including automatic grading, automatic discharge, anti-blocking, and silent vibration. Adding an ultrasonic system can also eliminate screen blockage issues with ultrafine pharmaceutical powders, improving sieving accuracy and efficiency.

Production Advantages: Depending on the mesh size and raw material characteristics, the maximum capacity can reach 3,300 kg/hour. Compared to traditional screening equipment, vibrating screens offer higher screening efficiency per unit time, reduce manual intervention, and improve process continuity and automation.

Vibratory Sifter Medicine Powder Sieving Workflow

Before operation, check the equipment's power supply, mesh size, seals, and support to ensure cleanliness. Evenly feed the dry powder. Adjust the vibration frequency (1200-3600 rpm) and amplitude (1-5 mm) according to the material characteristics, and set the sieving time (3-20 minutes). Once started, the vibrating motor drives the powder in three dimensions, allowing fine powder to pass through the mesh and fall to the lower layer, while coarse powder remains on the sieve surface. The screen condition and operating noise are monitored in real time. After completion, the powder is collected and labeled, the screen is cleaned, and the particle size is tested for acceptable quality before proceeding to the next step. The entire process must comply with GMP regulations to ensure sieving efficiency and product quality.

Vibratory Sifter Medicine Powder Sieving Technical Parameters

Vibratory Sifter Medicine Powder Sieving Supplier

As a vibrating screen manufacturer, we have extensive experience in the pharmaceutical industry. Our equipment is constructed from high-quality stainless steel (304/316L) and complies with GMP certification, ensuring durability and hygienic standards. The screen size, number of layers, and screening accuracy can be customized to meet diverse pharmaceutical production requirements. Precision laser cutting and automated welding technologies ensure equipment stability and longevity. We offer customized equipment based on production capacity, functionality, and structure. We also support trial runs with materials and provide technical guidance, screen replacement, and equipment maintenance to ensure production continuity.

As a key process equipment for pharmaceutical powder sieving, the Vibratory Sifter Medicine Powder Sieving plays an irreplaceable role in the pharmaceutical industry with its high precision, high efficiency, excellent sealing, and hygienic properties. Whether it's vitamin powders requiring a 60-200 mesh fine screen to ensure uniform particle size, active antibiotic powders requiring 100-300 mesh high-precision screening to remove minute impurities and ensure purity, or starch powders prone to clogging requiring a 20-80 mesh special anti-clogging screen for stable and continuous screening, vibrating screens provide reliable and stable screening solutions. Our factory has extensive industry experience, sophisticated manufacturing processes, and a comprehensive after-sales service system, making us a trusted equipment supplier for numerous pharmaceutical companies.
