Vibrating Screen Coconut Pollen

Vibrating Screen Coconut Pollen is a screening device designed for the characteristics of coconut powder. Its core advantage lies in processing ultrafine powder and highly viscous materials. Coconut powder is made from fresh coconut meat from Hainan Island through low-temperature cold extraction and spray drying. The particle fineness can reach 80-500 mesh. It is rich in nutrients such as amino acids, calcium, zinc, etc., but it is easy to cause agglomeration due to electrostatic adsorption or moisture. The vibrating screen can achieve the accuracy requirement of 99% passing through the 80-mesh screen through high-frequency vibration (1200-1500 times/minute) and ultrasonic screen cleaning technology. The daily processing capacity of a single device reaches 2-5 tons, meeting the needs of food-grade production. Common models include ordinary type, gate type, ultrasonic type and edged vibrating screen.

Features of Vibrating Screen Coconut Pollen

Vibrating Screen Coconut Pollen has ultrasonic anti-blocking screen technology, which effectively improves the cleaning efficiency by 80%. The part in contact with the material is 304/316L stainless steel. The modular design supports rapid replacement of screens and adapts to multiple specifications of production.

Most of the equipment is a closed structure to prevent dust from flying, which meets the hygiene requirements of the food and pharmaceutical industries. The screen is easy to replace and clean, which effectively improves the efficiency of use. The screening process is low-noise and low-energy, suitable for long-term continuous operation. The modular design allows the screen to be replaced in just 3-5 minutes, and different mesh sizes (such as 80 mesh coarse screen and 325 mesh fine screen) can be quickly switched to adapt to the production of multiple specifications of products. In addition, some models are equipped with automatic screen cleaning devices, such as rubber ball screen cleaning, ultrasonic vibration screen, etc., which greatly improves production capacity and screening stability. These features make it have obvious advantages in screening coconut pollen, a special fine powder material.

Parameters of Vibrating Screen Coconut Pollen

Parameters of Vibrating Screen Coconut Pollen include: screen mesh size 80-400 mesh, small processing capacity 30-100kg/h, medium and large processing capacity above 200kg; 1-5 layers of screen machine optional; material is 304 or 316L stainless steel, etc. The specific parameters are as follows:

Screen mesh number: usually between 80 and 400 mesh, commonly used are 120 mesh, 200 mesh, 325 mesh;

Processing capacity: small equipment processing capacity is 30kg-100kg per hour, medium and large equipment can reach more than 200kg;

Motor power: 0.25kW to 1.5kW, depending on the equipment diameter and number of layers;

Number of screening layers: 1-3 layers, up to 5 layers, can achieve multi-level screening;

Equipment material: 304 or 316L stainless steel, meet food grade and medical grade standards;

Excitation force form: ordinary vibration or ultrasonic vibration;

Equipment diameter: a variety of specifications from 400mm to 1500mm are available to meet different production requirements.

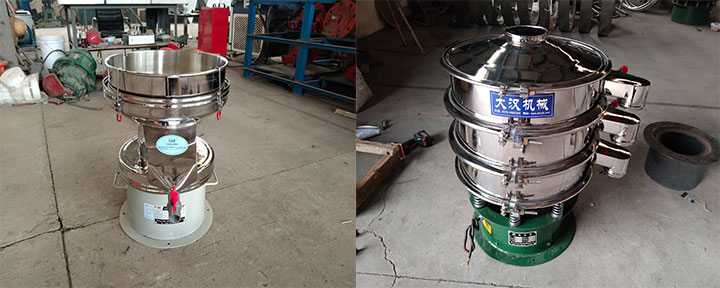

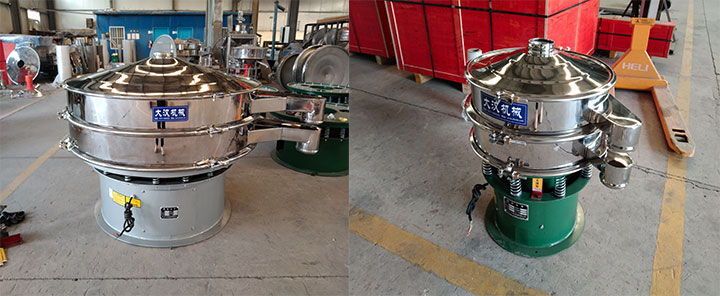

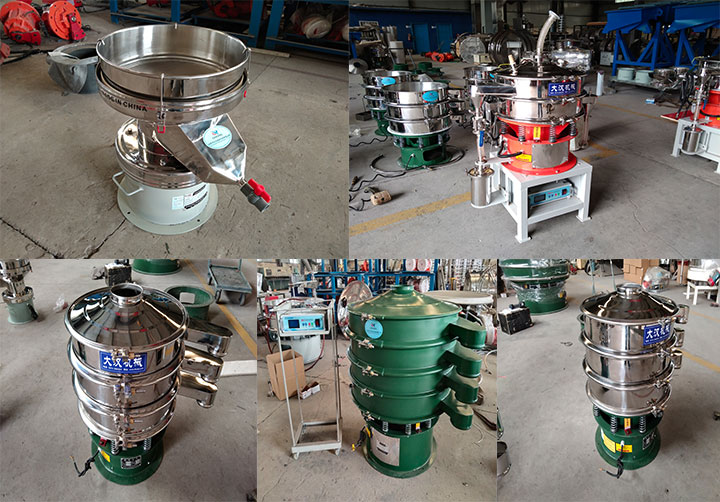

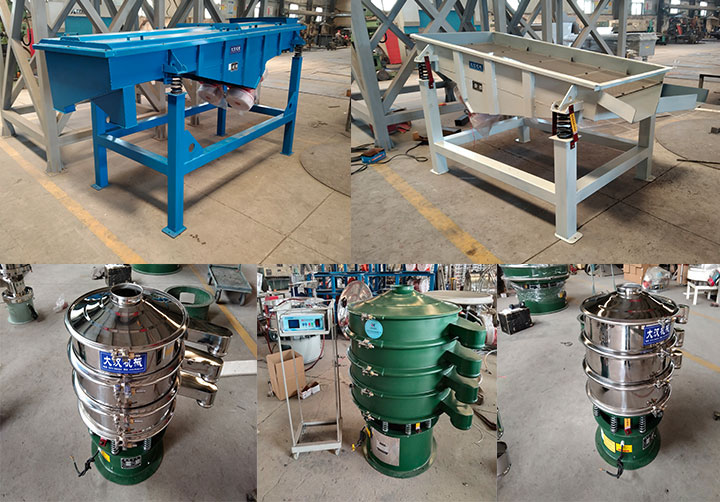

Types of Vibrating Screen Coconut Pollen

The four types of Vibrating Screen Coconut Pollen are suitable for coarse screening of coconut powder, ultra-fine screening, coconut milk filtration and high-precision screening, covering all aspects from primary processing to pharmaceutical-grade production. Features include amplitude control, pneumatic control, splash-proof design and ultrasonic declogging technology.

Ordinary Vibrating Screen: Basic equipment, using a single-layer screen and vertical vibration motor structure, the screen frame is made of carbon steel. Suitable for coarse screening of coconut powder (80-120 mesh), the amplitude can be controlled by adjusting the eccentric block, the cost is low, but it needs to be stopped every 2 hours for manual cleaning, suitable for small batch production.

Gate Vibrating Screen: The material flow rate is controlled by a pneumatic gate, equipped with a multi-layer sealed screen box and an air pressure regulation system. It can achieve 8 hours of continuous screening of ultrafine powder (325-500 mesh), the gate opening can be accurate to 0.5mm, and the screen life is extended by 40%. It is often used in high-end coconut powder export processing lines.

Edged vibrating screen: The feed inlet is raised by 15cm and connected by flanges, and a splash guard is added to the side wall. The matching 40-mesh stainless steel filter can achieve a coconut milk processing capacity of 300L/h, and the pulp-residue separation efficiency reaches 92%, which is used in the pipeline production line of coconut juice pretreatment.

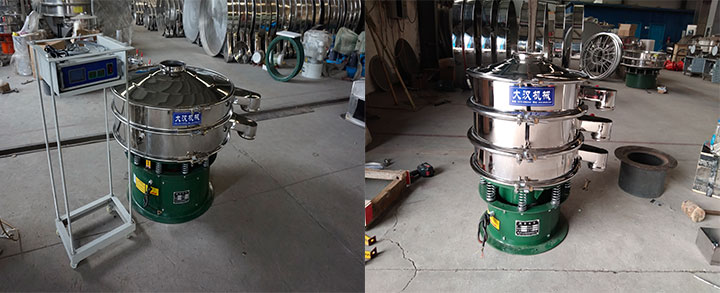

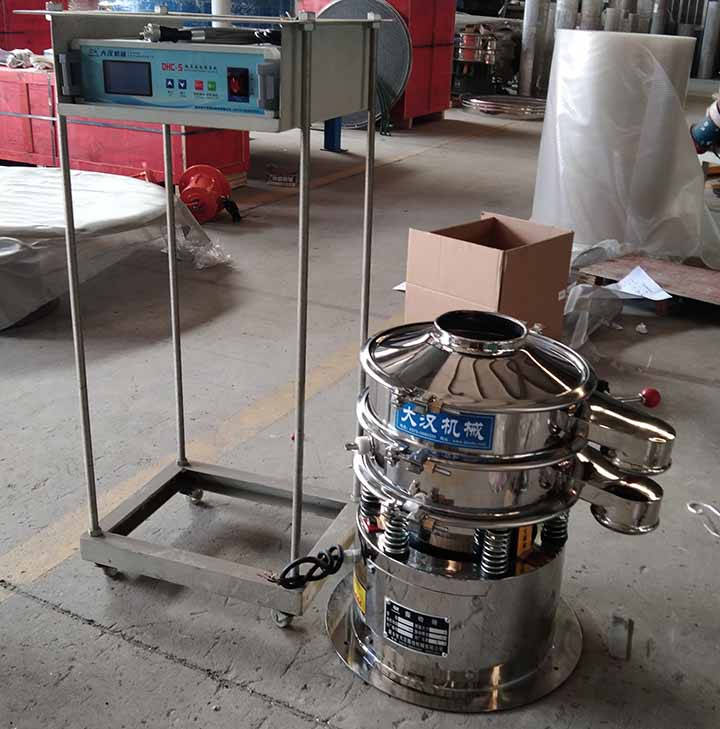

Ultrasonic vibrating screen: It integrates a 20kHz ultrasonic transducer and generates micron-level vibration through a resonator. It effectively solves the adsorption and agglomeration problem of coconut powder above 325 mesh, and the screening accuracy is increased to 5μm, accounting for more than 60% of the production of medical-grade coconut powder. The transducer module supports fast disassembly and maintenance.

Selection reference of Vibrating Screen Coconut Pollen

When selecting Vibrating Screen Coconut Pollen, the ordinary vibrating screen is suitable for conventional precision requirements. Its three-dimensional vibration can screen 200-500 mesh materials. It has a compact structure and convenient maintenance, but it is easy to block the net when screening ultrafine powder. The gate type improves accuracy by controlling the residence time of the material. It is suitable for high-purity coconut pollen classification, but the output is low. The ultrasonic type uses high-frequency vibration to solve the problems of static electricity and agglomeration. It can screen 400-600 mesh ultrafine powder and is suitable for high-value-added coconut pollen purification, but the cost is relatively high. The edged type prevents splashing by expanding the feeding port and the edge design. It is suitable for the initial screening of large quantities of coconut pollen, and the screen replacement only takes 3-5 minutes.

Vibrating Screen Coconut Pollen is a vibrating screening equipment designed for high-viscosity and ultrafine powders such as coconut powder. It has the advantages of ultrasonic anti-blocking net, modular design, and fast screen replacement. Its processing accuracy is as high as 99% through an 80-mesh sieve, supports 1-5 layers of screening structure, and the daily processing capacity of a single machine can reach 2-5 tons. The equipment types include ordinary type, gate type, ultrasonic type and edged type, which are respectively suitable for different links such as coarse screening of coconut powder, high-precision screening, and coconut milk filtration. It is made of food-grade stainless steel, with a closed structure, dustproof and low noise, which meets the needs of the food and pharmaceutical industry and is an ideal screening solution in the field of coconut powder processing.
