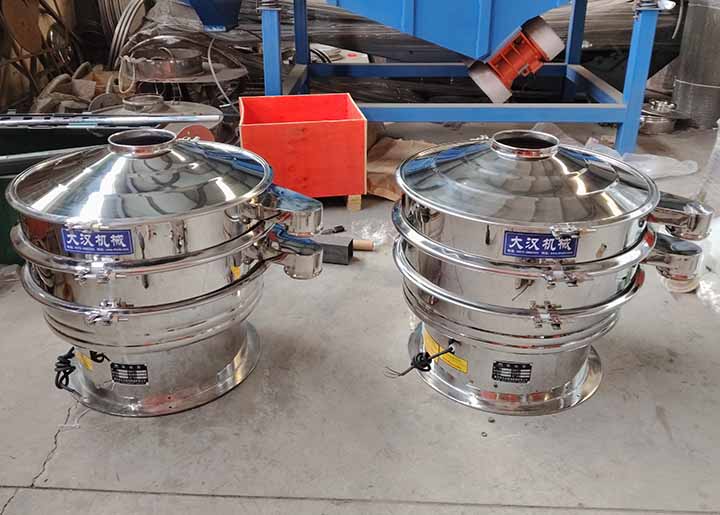

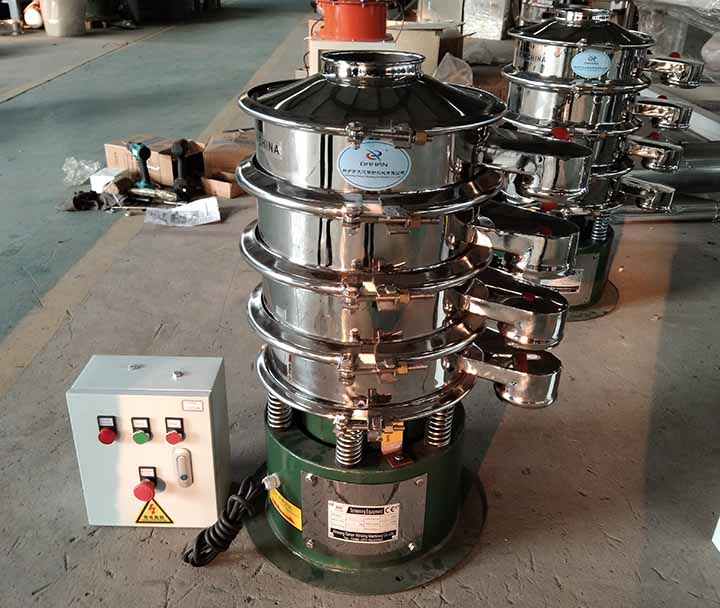

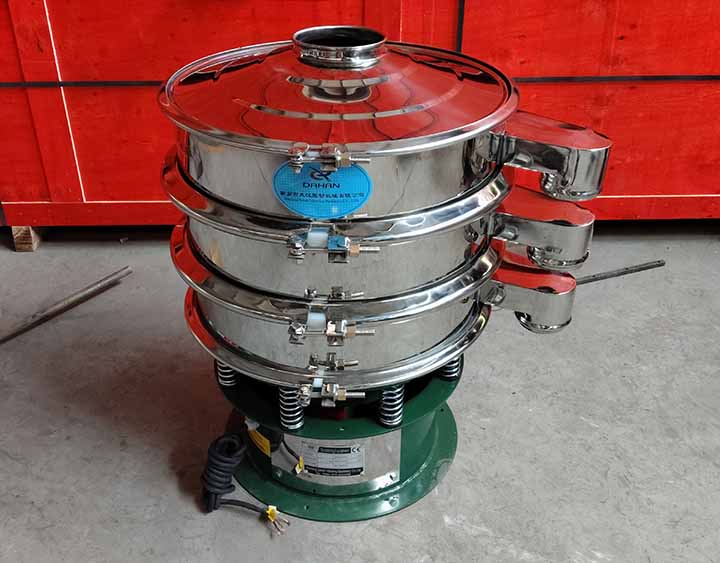

Industrial Coffee Powder Rotary Vibrating Screen

The Industrial Coffee Powder Rotary Vibrating Screen separates coffee powder and instant coffee powder into particle grades, breaks up agglomerated lumps, and intercepts foreign matter. The screening mesh size ranges from 20 mesh to 200 mesh (850 microns to 75 microns). Contact parts with materials are made of 304 or 316L stainless steel, with internal polishing reaching Ra≤0.4μm. Depending on the mesh open area ratio and coffee powder oil content variations, processing capacity ranges from 100 kg to 3000 kg per hour for a single unit.

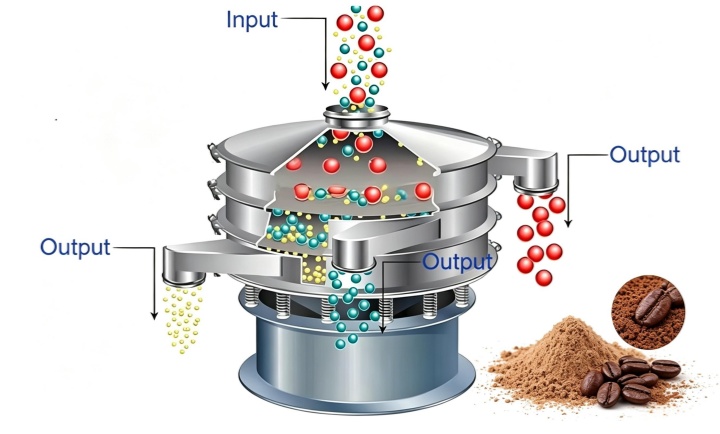

After coffee powder is continuously fed into the top inlet, under the three-dimensional exciting force generated by the 3D vibrating motor, the material exhibits a spiral progressive motion spreading from the center to the outer edge on the screen surface. Particles smaller than the mesh aperture quickly pass through the mesh and sink to the lower discharge port, while oversize particles and foreign matter remain on the screen surface and are smoothly discharged from the side outlet following the motion trajectory.

Physical Characteristics of Coffee Powder and Production Solutions

Coffee powder contains natural oils, easily absorbs moisture to form agglomerates, and generates static electricity during high-speed friction, causing mesh blinding and dust dispersion. This equipment provides targeted structural solutions based on the physical properties of coffee powder.

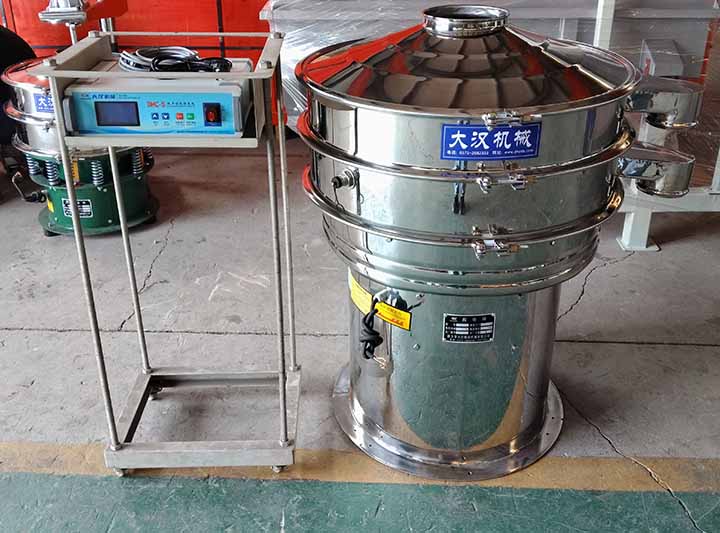

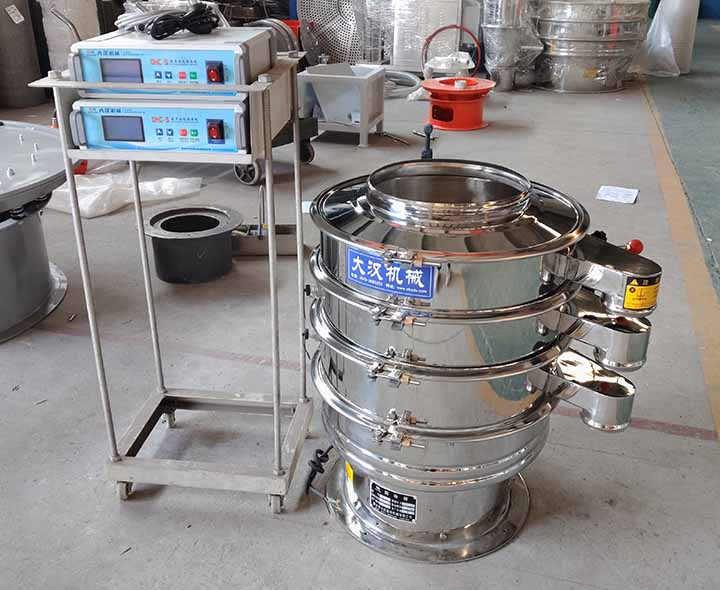

Oil Adhesion and Mesh Blinding Issues: An ultrasonic transducer device is installed below the screen frame to convert electrical energy into high-frequency, low-amplitude mechanical vibration. This vibration transmits to the screen surface to break up the interaction forces between oil films and particles, maintaining open apertures.

Moisture Agglomeration and Static Adhesion: Non-toxic silicone bouncing balls are placed at the bottom of the screen frame, continuously striking the underside of the screen mesh during operation to break up coffee powder lumps. Meanwhile, the equipment includes a grounded copper wire to eliminate friction static electricity.

Aroma Loss and Dust Dispersion: Machine joints feature a quick-release clamp structure with recessed silicone sealing rings, forming a enclosed operating environment that blocks external moisture and reduces the loss of volatile coffee gases.

Model Technical Parameter Table and Selection Advice

Selection Advice:

By Particle Size Requirement: For coarsely ground coffee powder (20-40 mesh), select SY-600 or SY-800 equipped with bouncing ball cleaning devices; for finely ground coffee powder (80-200 mesh), direct configuration with an ultrasonic anti-blinding system is recommended.

By Oil Content Index: When coffee powder oil content exceeds 12%, material fluidity decreases. Please select one size larger during model selection (for example, if expected throughput is 500 kg/h, upgrading from SY-800 to SY-1000 is advised).

Application Cases

Case 1: Instant Coffee Post-Spray Drying Processing
An instant coffee processing plant installed a single-deck SY-1000 sifting machine below the spray drying tower outlet. Utilizing a 60-mesh screen, it processes 1200 kg of coarse powder per hour, removing scorched particles and lumps, with output directly feeding into the automated packaging line.

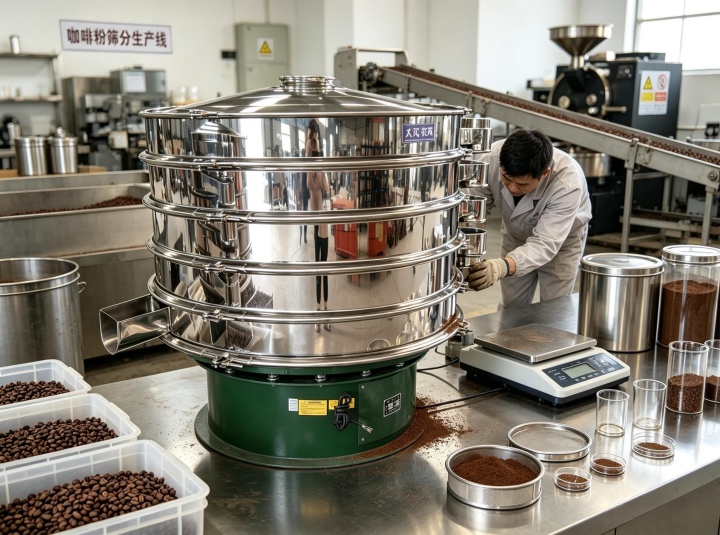

Case 2: Commercial Roasted Bean Grinding and Grading
A commercial coffee roasting plant installed a double-deck SY-800 sifting machine downstream of an industrial coffee grinder, utilizing 30-mesh and 80-mesh screens respectively to separate ground coffee powder into coarse, medium, and fine grades for different extraction equipment.

Frequently Asked Questions

Q1: What is the HS code for an industrial coffee powder vibrating screen?
Answer: In the International Harmonized System, industrial coffee powder vibrating screens are typically classified under HS Code 8474.10.0000 (machinery for sorting, screening, or separating solid materials) or 8479.82.0000 (mixing, screening, or sifting machines having individual functions). Please consult specific tariff subheadings of the importing country during customs clearance.

Q2: Which stainless steel grade should I choose for coffee powder processing?
Answer: Standard 304 stainless steel meets corrosion resistance and non-contamination requirements for conventional roasted coffee powder screening. If processing coffee powder mixtures with high organic acidity, elevated moisture content, or added wet ingredients, 316L stainless steel with better pitting resistance is recommended.

Q3: How to prevent coffee powder from clogging the screen mesh?
Answer: Silicone bouncing balls can be installed under the screen mesh for physical impact. For fine powders above 100 mesh or dark roasted coffee powders with higher oil content, installing an ultrasonic cleaning system is recommended to dislodge trapped particles from mesh openings via high-frequency vibrations.

The Industrial Coffee Powder Rotary Vibrating Screen builds a grading pipeline from coarse powder impurity interception to fine powder particle size control. Utilizing 304/316L stainless steel materials and mirror polishing processes, the equipment satisfies non-contaminating processing standards; the enclosed structure combined with ultrasonic or bouncing ball cleaning components resolves challenges like oil mesh blinding, moisture agglomeration, and dust dispersion in coffee powder. Multiple specifications cover processing demands from 100 kg to 3000 kg per hour, providing reliable technical support for coffee powder processing workflows.
