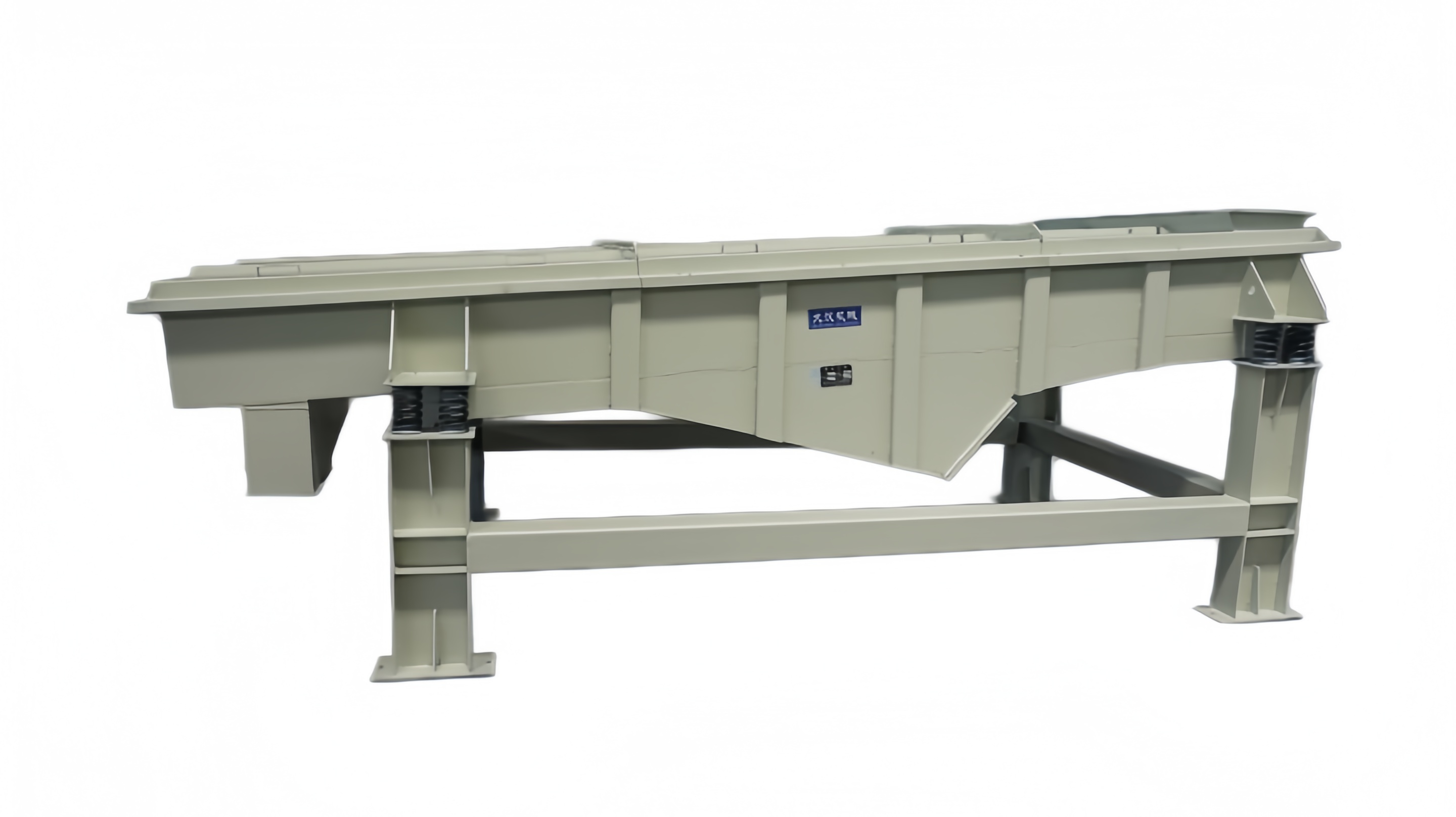

Rectangular Vibrating Screen

Stop losing production time to inefficient screening. The DZSF Series Rectangular Vibrating Screen is a high-performance linear motion screening equipment engineered for classification, grading, impurity removal, and dust elimination of dry bulk materials. Whether you are processing chemical powders, food ingredients, or mineral materials, this Rectangular Vibrating Screen delivers consistent classification accuracy with minimal maintenance requirements.

Based on extensive field applications, this Rectangular Vibrating Screen has been proven to effectively handle materials ranging from fine powders to granular products up to 10mm with consistent performance in continuous 24/7 production environments. The Rectangular Vibrating Screen is suitable for materials with particle sizes from 0.074mm to 10mm and moisture content below 7%.

Working Principle

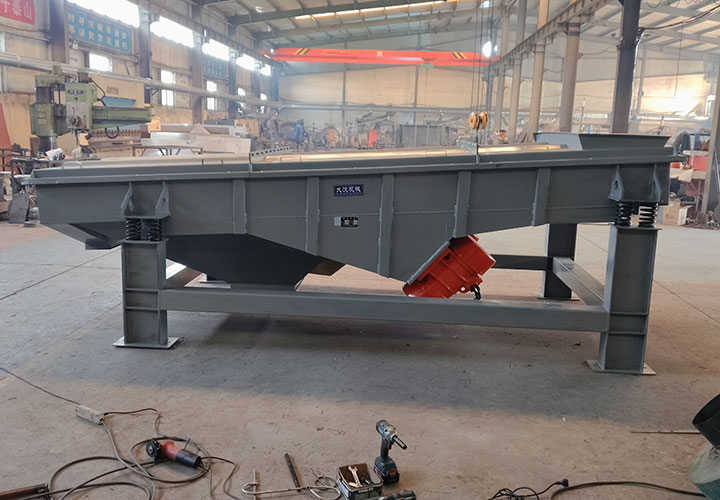

The DZSF Series Rectangular Vibrating Screen is driven by two vibrating motors that rotate synchronously and in opposite directions. The excitation forces cancel each other out parallel to the motor spindle while combining into a single resultant force perpendicular to it, causing the screen box to vibrate in a linear trajectory.

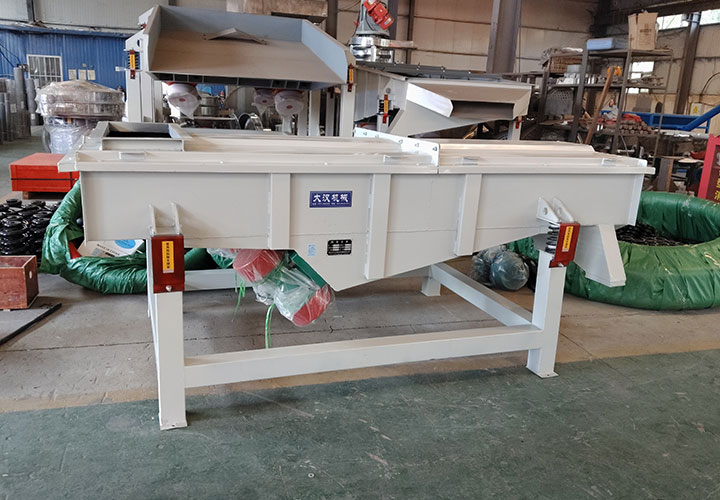

DZSF Series Rectangular Vibrating Screen in action, demonstrating efficient material classification and screening performance.

Material is thrown upward and propelled forward in a straight line, allowing smaller particles to pass through while oversized particles are conveyed to the discharge end. The screen frame can be adjusted to various inclination angles to fine-tune material flow speed.

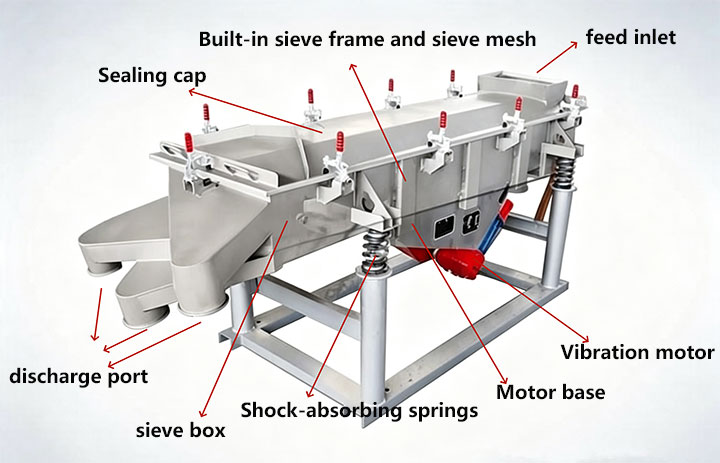

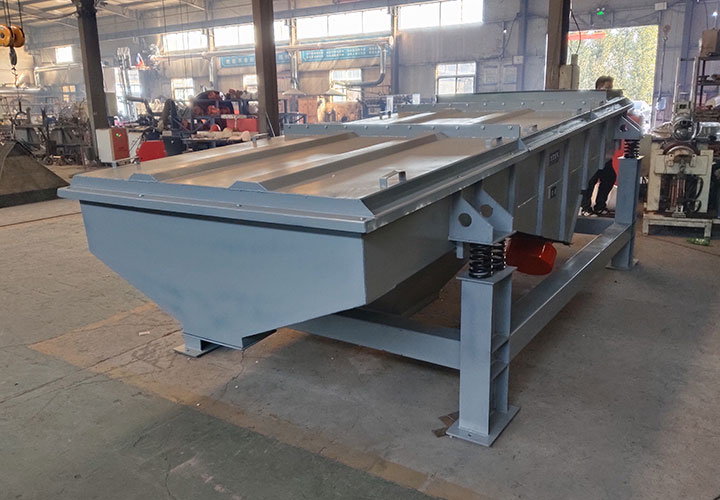

Structure Composition

Screen Box: high-strength steel plate construction.

Screen Mesh: woven wire mesh (AISI 304/316) or perforated plates.

Vibration Motors: dual motors with synchronized reverse rotation.

Motor Pedestal: supports motors with adjustable positions.

Damping Springs: rubber isolation springs for vibration absorption.

Support Bracket: stable foundation, must be mounted perpendicular to ground.

Discharge Ports: customizable positions (left, right, forward, or downward).

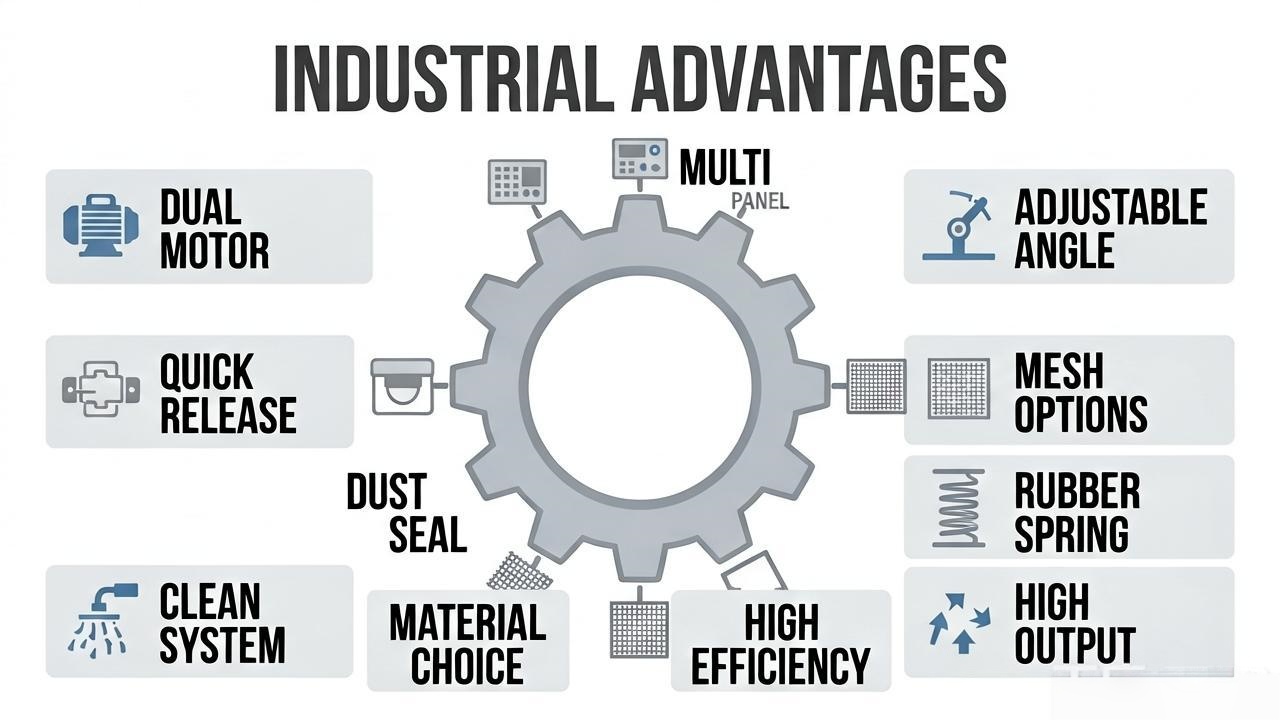

Key Features

Dual vibrating motor drive with synchronized reverse rotation;

1 to 8 screen decks for multi-fraction classification;

Adjustable inclination angle (0°–15°);

Quick-release clamping system for rapid screen replacement;

Dust-tight enclosure for clean operation;

Multiple screen media options (woven wire mesh or perforated plates);

Rubber damping springs for reduced noise;

Optional bouncing ball or ultrasonic cleaning systems;

Carbon steel or stainless steel construction options;

Screening efficiency up to 96%;

Processing capacity up to 20 tons/hour.

Technical Parameters

Model	Screen Size (mm)	Particle Size (mm)	Amplitude (mm)	Deck Layers	Motor Power (kw)
DZSF-520	500×2000	≤10	2–4	1–6	2×(0.37–0.55)
DZSF-525	500×2500	≤10	2–4	1–6	2×(0.37–0.75)
DZSF-1020	1000×2000	≤10	3–5	1–6	2×(0.75–1.1)
DZSF-1025	1000×2500	≤10	3–5	1–6	2×(0.75–1.1)
DZSF-1030	1000×3000	≤10	3–5	1–6	2×(1.1–1.5)
DZSF-1225	1200×2500	≤10	3–5	1–6	2×(0.75–1.5)
DZSF-1530	1500×3000	≤10	3–7	1–6	2×(1.5–2.2)

Customized sizes and configurations are available upon request.

Applications

Chemical: Powders, resins, granules, dyes, pigments

Food: Sugar, salt, flour, starch, spices, grains

Pharmaceutical: Powders, granulations, tablets

Plastics & Rubber: Pellets, regrind, rubber granules

Metallurgy: Iron powder, aluminum powder, alloy powders

Building Materials: Cement, sand, aggregates

Fertilizer: Compound fertilizers, organic fertilizers

Grain & Feed: Wheat, corn, soybeans, rice

In response to the updated FDA Food Safety Modernization Act (FSMA) guidelines for 2026, manufacturers across food, pharmaceutical, and chemical industries are increasingly adopting stainless steel Rectangular Vibrating Screens to meet stricter hygiene and corrosion resistance standards for powder processing equipment.

Selection Guide

When selecting a Rectangular Vibrating Screen, consider:

Material characteristics – particle size, moisture content, bulk density, abrasiveness

Screening objectives – safety screening, grading, dust removal, or dewatering

Configuration – deck layers, mesh size, construction material, inclination angle, cleaning system

Rectangular vs. Circular Vibrating Screen

Aspect	Rectangular	Circular
Motion	Linear	Circular/elliptical
Application	Grading, classification, conveying	Fine screening, dewatering
Capacity	Higher for dry materials	Better for finer separation

Installation & Maintenance

Installation: Install on level concrete foundation；Ensure damping springs are perpendicular to ground；Re-tighten connecting screws during first three days of operation.

Daily Inspectio: Check screen mesh for damage;Listen for abnormal noise;Verify motor temperature.

Weekly Maintenance: Tighten bolts;Clean screen surface;Inspect discharge ports.

Monthly Service: Check motor bearings;Measure vibration amplitude;Inspect screen frame for fatigue.

Troubleshooting : Symptom: Material buildup.

Cause: High moisture, clogging.

Action: Install cleaning system.

Symptom: Reduced efficiency.

Cause: Worn mesh or incorrect angle.

Action: Replace mesh or adjust angle.

Symptom: Excessive noise.

Cause: Loose bolts or damaged springs.

Action: Tighten bolts or replace springs.

Frequently Asked Questions

Q: What is the maximum feed size?

A: Up to 10mm. Larger materials may require pre-crushing.

Q: Can the screen mesh be customized?

A: Yes, mesh size and material (AISI 304/316, polyurethane) can be tailored.

Q: How many screen layers are available?

A: 1 to 8 layers for multi-fraction separation.

Q: What is the difference between circular and Rectangular Vibrating Screens?

A: Rectangular screens provide linear motion for higher throughput in dry classification. Circular screens offer circular motion better suited for fine screening and dewatering.

Q: Is the equipment suitable for 24/7 operation?

A: Yes, designed for continuous industrial operation.

Q: What cleaning options are available?

A: Bouncing ball systems for dry applications and ultrasonic systems for ultra-fine screening.

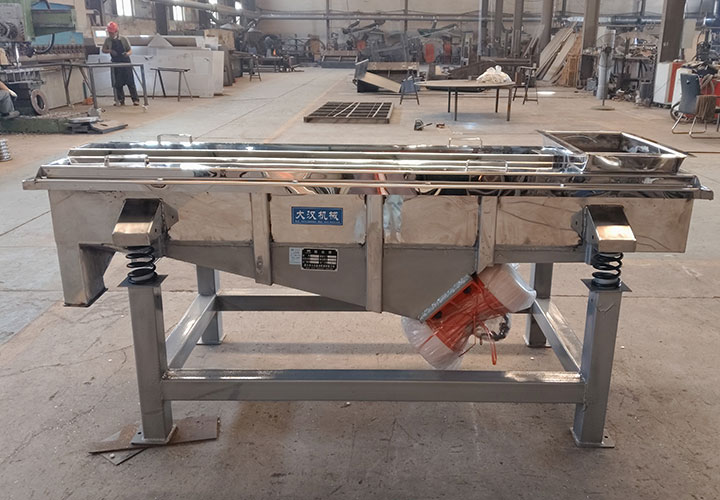

Q: What construction materials are available?

A: Carbon steel for general use; stainless steel (AISI 304/316) for food, pharmaceutical, and corrosive applications.

Why Choose the DZSF Series?

Dahan's DZSF Series Rectangular Vibrating Screen is manufactured to stringent quality standards with comprehensive performance testing prior to shipment. Robust construction, versatile configurations, and proven reliability make it a trusted choice worldwide.

Dahan provides technical support and customization services to ensure each Rectangular Vibrating Screen meets specific operational requirements. Dahan is dedicated to delivering screening equipment that enhances productivity across diverse industries.
