Industrial Vibro Sifter

Product Price: $800.00-$4,500.00/Set Get Latest Price

Request
Callback

Efficient Powder and Granule Screening

Capacity:	100–2000 kg/h
Screen Diameter:	400–1800 mm
Screen Decks:	1–5 Layers

For powder and granule screening and grading.

Material options: Carbon steel, SUS304 or SUS316L.

Motor power: 0.18–2.2 kW.

Yes! I am Interested

An Industrial Vibro Sifter is a circular vibrating screening machine used to separate, grade, and remove oversized particles or impurities from powders and granules.It is available with different screen diameters, deck configurations, mesh sizes, motor powers, and construction materials for different screening requirements.

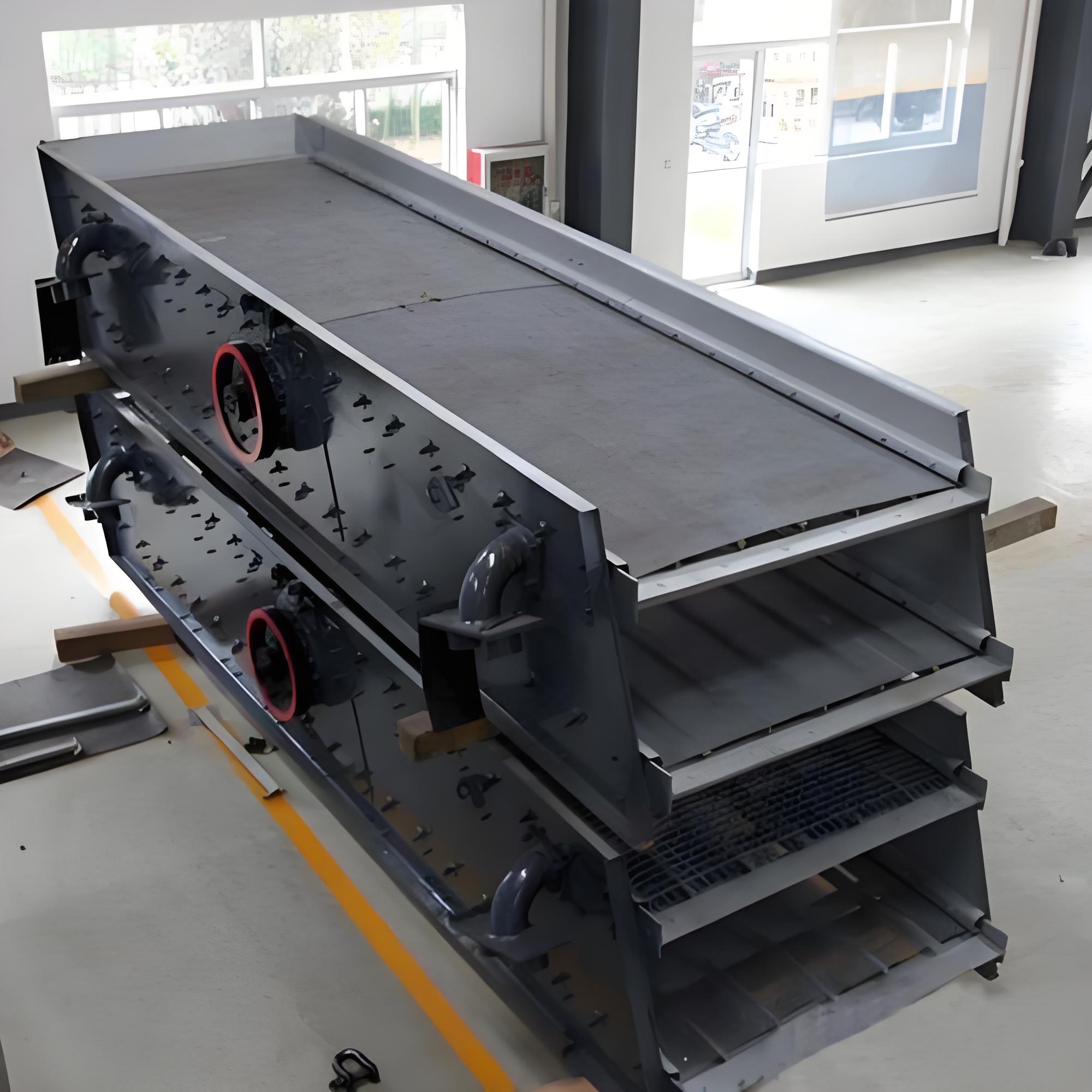

Industrial powder screening process

Send your material, capacity, and mesh requirement to get a suitable model recommendation.

Technical Specifications

Screen mesh, contact material, inlet, discharge outlets, sealing, and screen-cleaning arrangements can be configured according to the application.

The capacities above are reference values for standard configurations. Actual throughput depends on material density, moisture, particle size, flowability, mesh opening, feed rate, and separation requirements.

Model	Screen Diameter	Decks	Motor Power	Reference Capacity
DH-400	400 mm	1–5	0.18 kW	100 kg/h
DH-600	600 mm	1–5	0.25 kW	200 kg/h
DH-800	800 mm	1–5	0.55 kW	500 kg/h
DH-1000	1000 mm	1–5	0.75 kW	800 kg/h
DH-1200	1200 mm	1–5	1.1 kW	1200 kg/h
DH-1500	1500 mm	1–5	1.5 kW	1800 kg/h
DH-1800	1800 mm	1–5	2.2 kW	2000 kg/h

Working Principle

A vertical vibration motor with eccentric weights generates the centrifugal force that drives the screening assembly.The resulting vibration produces horizontal, vertical, and inclined movement. Material entering the screen spreads across the mesh as it moves toward the discharge outlet.

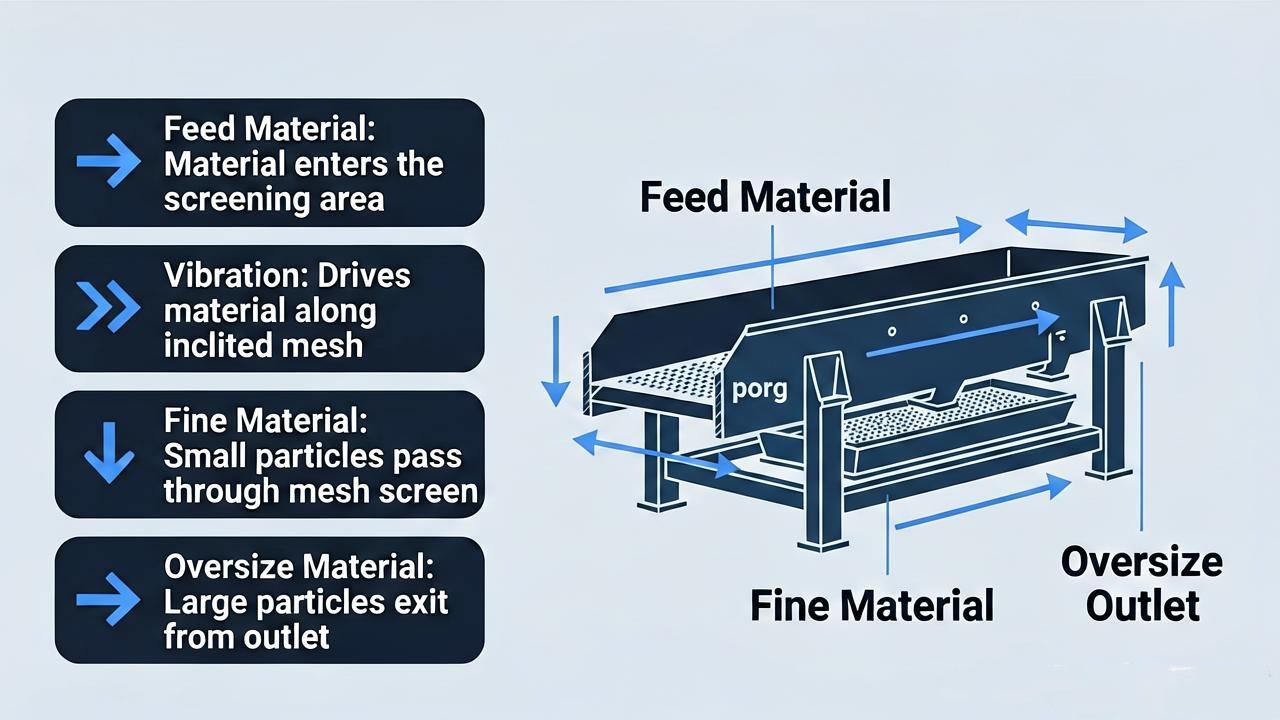

Industrial vibro sifter working principle diagram

Particles smaller than the selected aperture pass through the mesh, while oversized particles remain above the screen and are discharged separately.

For multi-deck screening, different mesh sizes can be installed to separate several particle-size fractions in one operation. Similar industrial vibro sifter designs use eccentric weights to create the multi-directional movement required for material separation.

Key Configurations

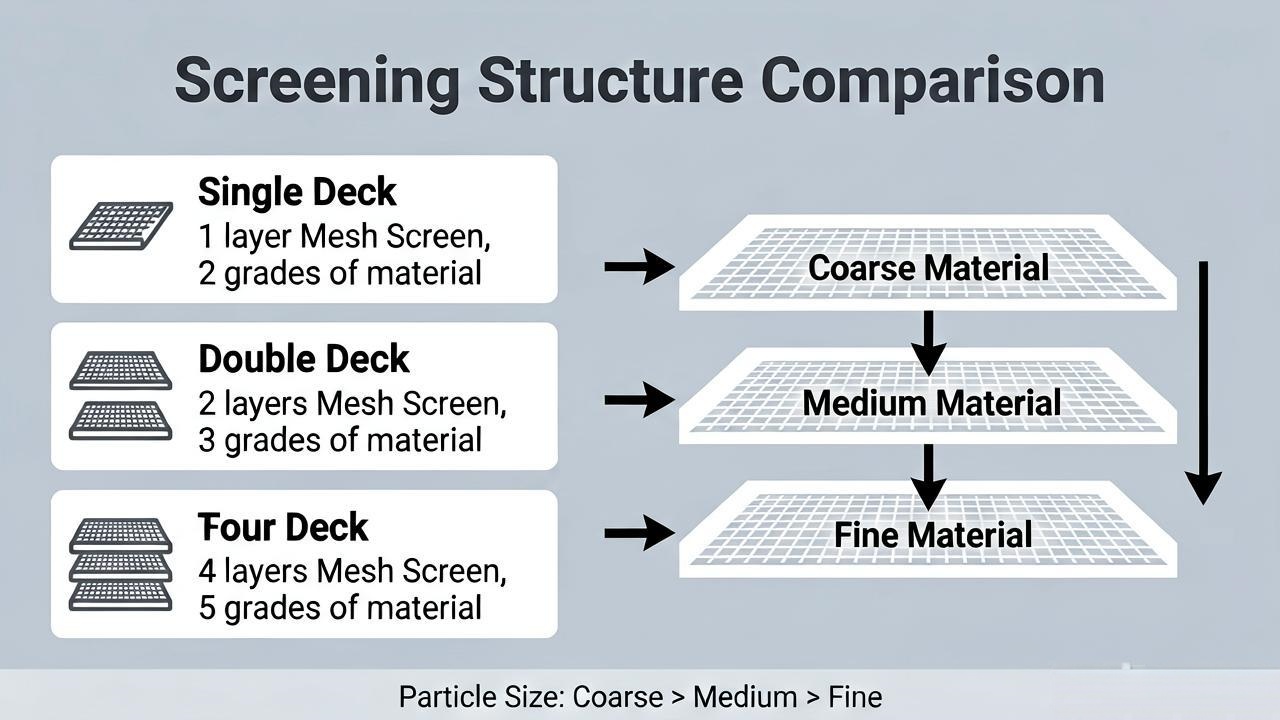

Single and multi-deck screening structure comparison

1–5 Decks: A single deck is suitable for one screening cut. Multiple decks can separate several particle-size fractions in one operation.

Screen Mesh: Mesh size is selected according to the required separation size and material characteristics. Fine powders may require suitable screen-cleaning arrangements to reduce mesh blinding.

Construction: Carbon steel is suitable for many general industrial applications. SUS304 or SUS316L can be selected for applications requiring corrosion resistance, hygiene, or specific product-contact requirements.

Continuous Screening: Material can be continuously fed and separated, with different fractions discharged through corresponding outlets.

These configuration choices are consistent with the main specification categories used across current vibro sifter product pages, including screen diameter, deck number, mesh, capacity, motor power, and construction.

Screening Applications and Examples

Powder and granule screening applications

The values above are application-specific references rather than standard machine ratings. Actual capacity varies with material properties, mesh size, moisture, feed rate, and required separation.

The machine can be used for screening powders and granules in food, pharmaceutical, chemical, mineral, ceramic, and other industrial processing applications.Typical materials include flour, sugar, salt, starch, spices, pharmaceutical powders, pigments, mineral powders, ceramic materials, and metal powders.

Material	Mesh	Capacity	Configuration
Flour	24 mesh	1500 kg/h	DH-1000-1S
Medicine Powder	80 mesh	550 kg/h	DH-800-1S
Salt	30/80 mesh	5000 kg/h	DH-1500-1S
Aluminum Powder	80/120 mesh	350 kg/h	DH-800-2S
Soy Sauce	100 mesh	6500 kg/h	DH-1200-1S

How to Select the Right Model？

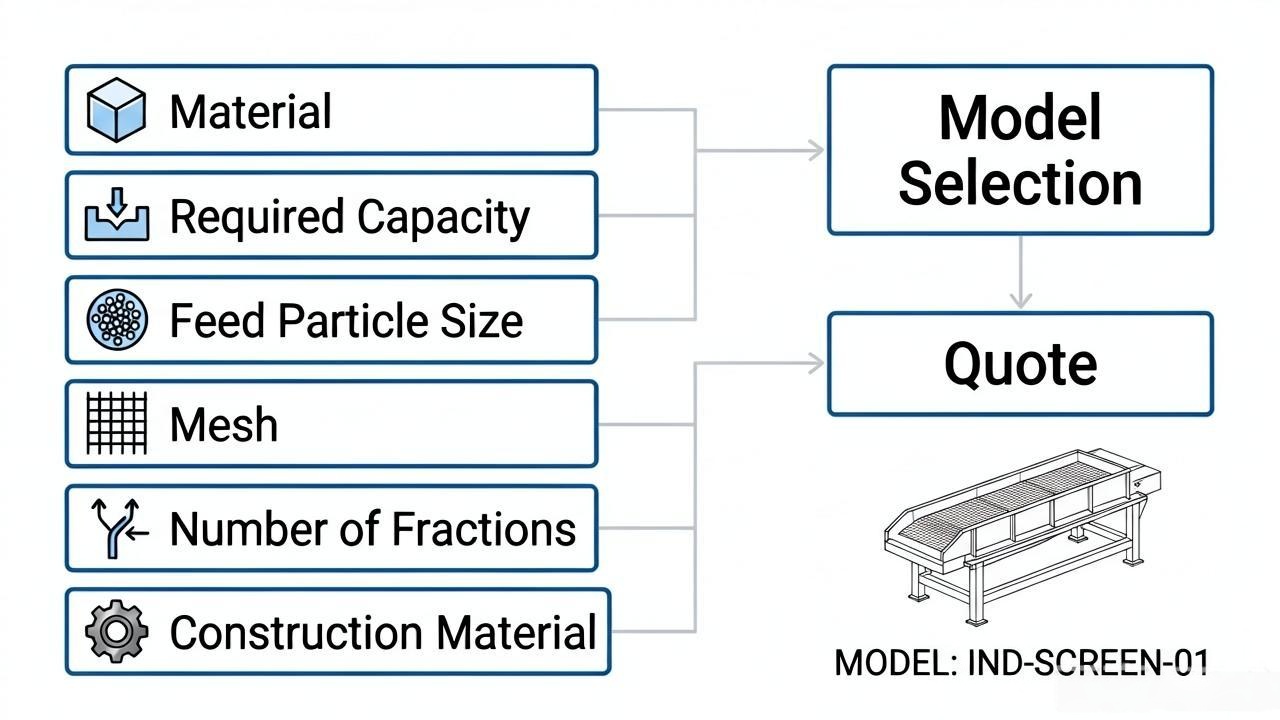

Industrial vibro sifter model selection guide

Model selection should be based on the complete screening requirement:

Material + Required Capacity + Feed Particle Size + Mesh + Number of Fractions + Construction Material

The screen diameter is selected according to the required screening area and throughput. The number of decks depends on how many particle-size fractions need to be separated. Mesh size is determined by the target separation size and material characteristics.Providing these parameters allows the appropriate configuration to be evaluated before quotation.

Frequently Asked Questions

What capacity can it handle?

Standard models provide reference capacities from approximately 100 to 2000 kg/h. Actual throughput depends on the material, mesh, feed rate, and screening conditions.

How many decks are available?

The standard range can be configured with 1–5 decks. A single deck is suitable for one screening cut, while multiple decks are used for multi-fraction separation.

Can the machine be customized?

Yes. Screen diameter, deck number, mesh, construction material, inlet, discharge outlets, sealing, and screen-cleaning arrangements can be configured according to the application.

Why Choose Dahan?

Dahan provides configurable vibrating screening equipment with different screen diameters, deck configurations, mesh options, and construction materials for powder and granule screening applications.

Relevant equipment can be supplied with ISO9001 and EU CE certification according to the applicable configuration and requirements.

Get a Model Recommendation & Quote

Provide the following information for model selection:

Material:

Required capacity:

Feed particle size:

Required mesh:

Number of fractions:

Construction requirement:

Send these details to Dahan for a suitable model recommendation and quotation.
