Application and structural advantages of pomegranate juice vibrating sieve

Pomegranate is very rich in nutritional value, but for many people, pomegranate skin is difficult to peel, and pomegranate has more seeds and less flesh, which is a troublesome thing to eat. At this time, pomegranate juice is a near-perfect substitute. During the processing of pomegranate juice, a vibrating sieve is an essential filtering tool.

Process flow of pomegranate juice

From pomegranate to pomegranate juice, pomegranate picking→sorting→cleaning→crushing and peeling→juicing→coarse filtration→mixing→filtering→homogenization→degassing→sterilization→pomegranate juice filling and sealing→sterilization→cooling inspection→packaging finished product process flow

Application of Pomegranate Juice Shaker

The pomegranate juice vibrating sieve is mainly used in the coarse filtration step to remove the suspended solids and pomegranate seeds left in the pomegranate juice after juicing. it is good.

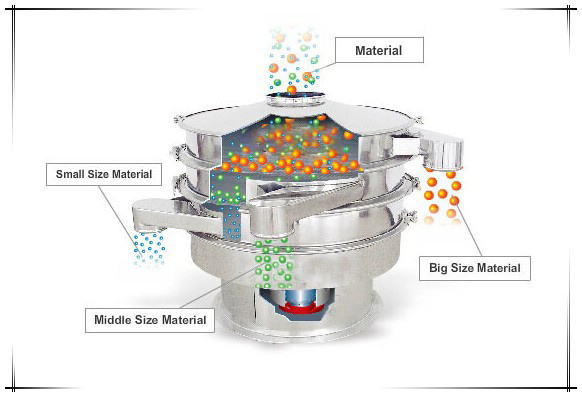

The pomegranate juice vibrating sieve is a single-layer design, and there are two discharge ports that can automatically discharge pomegranate juice and pomegranate residue (the upper layer is out of pomace, and the lower layer is out of pomegranate juice);

The entire vibrating sieve is designed with full food-grade stainless steel (including the sieve), which can ensure that it meets the hygienic requirements of pomegranate juice sieveing;

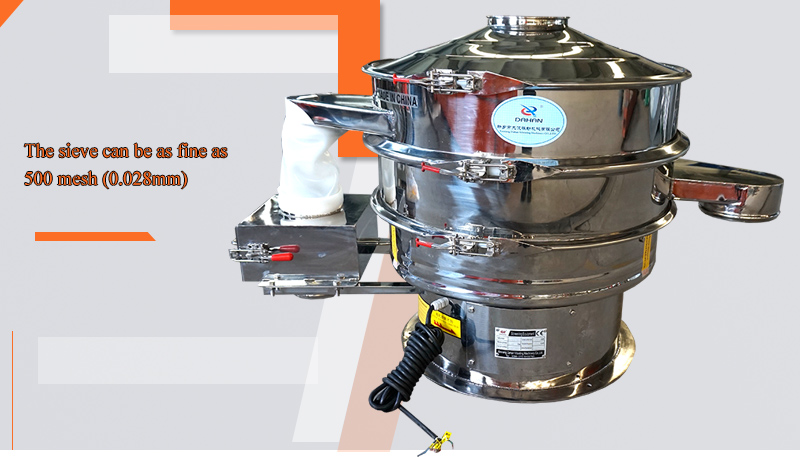

The sieve can be as fine as 500 mesh (0.028mm), so there is no need to worry about the pomegranate juice being filtered cleanly (the 120-mesh sieve is generally used for pomegranate juice filtration);

In addition, the feeding port of the pomegranate juice vibrating sieve is designed with a rim to prevent the pomegranate juice from splashing out when entering or sieving;

Both the inlet and outlet ports can be welded with flange rings, so as to connect the upper and lower end inlet and outlet devices for assembly line processing. At the same time, an observation window is designed on the sieve cover to keep abreast of the filtration of pomegranate juice.

The filtration diameter of pomegranate juice vibrating sieve ranges from 400mm to 2000mm, and different models correspond to different output (100-3300kg/h). If there is a larger sieveing requirement, special customization can also be made.

In addition, the pomegranate juice shaker can be used in the sieving of liquid beverage juices such as orange juice, soy milk, and mango juice.
